Machine Parameters | |
Highest Mechanical Speed | 1000m/min |
Raw Material and Fiber Number | polyester 55-222dtex(50-200Denier) |
Section Size | 1440mm |
False twist way | Folding disc type false twister,friction false twisting |
The highest speed of false twist device | 18000r/min |
False twist direction | S,Z adjustable |
The first heat box (distortion) | biphenyl gas phase heating / 2000mm |
The second heat box (figuration) | biphenyl gas phase heating / 2000mm |
Deformation heat box temperature range | 160-250℃ |
Figuration heat box temperature range | 160-250℃ (low temperature biphenyl as 100-160℃) |
Cooling mode and length | cooling rail to cool naturally / 1100mm |
Friction drum diameter | φ100mm |
Roller diameter | φ75mm |
Oiling roller diameter | φ75mm |
Largest original yarn size | φ435×250mm |
Maximum take-up size | φ250×250mm |
Standard take-up capacity weight | 5KG |
Take-up paper pipe specifications | φ69×57×290mm |
Machine Parameters | ||||||
Spindle | 240 Spindle | 288 Spindle | 312 Spindle | 336 Spindle | 360 Spindle | |
Section | 10 | 12 | 13 | 14 | 15 | |
Spindle pitch | 110mm | |||||
Total power(kw) | Drive | 93.5 | 110.5 | 122.3 | 127 | 143.1 |
Up heat box | 68 | 81.6 | 88.4 | 95.2 | 102 | |
Below heat box | 24 | 28.8 | 31.2 | 33.6 | 36 | |
Assist power | ≈6 | ≈6 | ≈6 | ≈6 | ≈6 | |
Total power | 191.5 | 226.9 | 247.9 | 261.8 | 287.1 | |
Dimension(Stationary creel) | 19.12*7.02*5.26m | 22*7.02*5.26m | 23.44*7.02*5.26m | 24.88*7.02*5.26m | 26.32*7.02*5.26m |

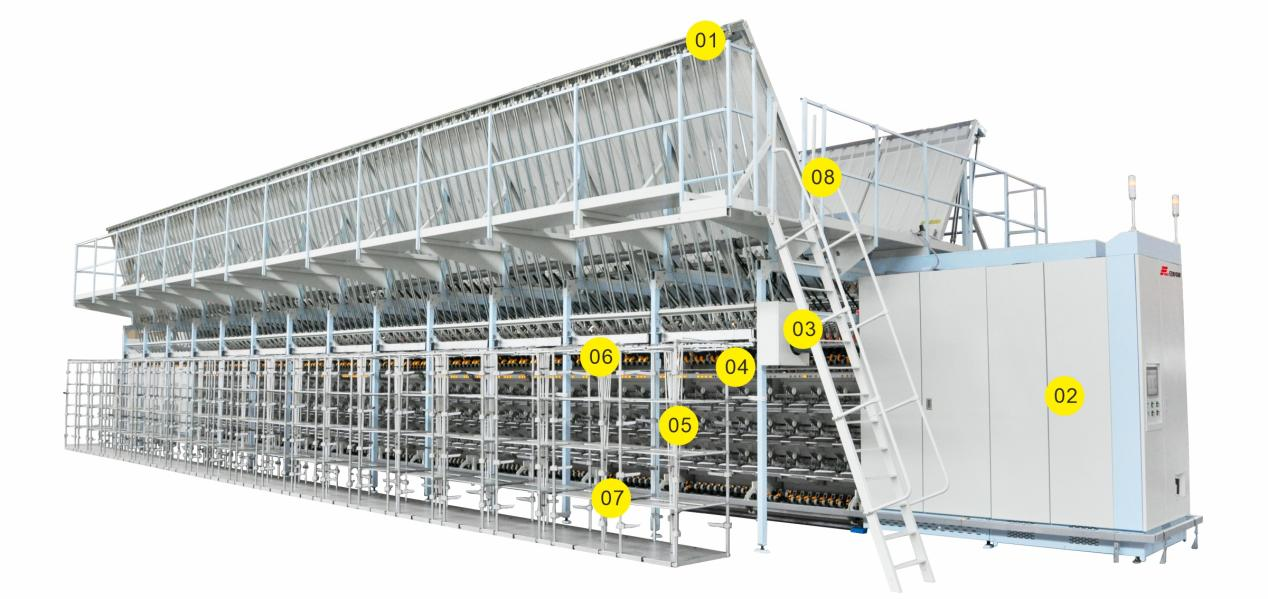

The machine is equipped with two ways of heat box, the first heat box(Deformation heat box) and the second heat box(Figuration heat box) is using biphenyl gas phase heating, closed structure, it increase the internal heat preservation methods, use PLC control heating and temperature control, temperature control precision is ±1°C, effectively ensure the yarn quality, it is more advantageous to dyeing and keeping more uniformity.
PLC control system, the machine through man and machine communication, to realizes process adjustment.The touch screen and operation made the process set simply and easily, so it is easy to understand, using the network interface can custemized do more machine networking management.
The new structure design and control mode, the single roller, single motor drive directly, canceled synchronous belt, reduce the transmission chain length, improve the transmission efficiency, on both sides of the machine can be relatively independent operation, on a left process can be adjusted respectively set, in the same equipment, processing can be two different original yarn, and improve the equipment uillization, realize the muti-usage.
The fold type disc VIII false twist device, can choose single belt or double belt transmission mode, install guide ceramic dise and knife edge disc, optional configuration scope from 1-4-1 to 1-7-1.
W1/W2/W3 roller adopts nip roller type structure, plastic roller frame, uniform pressure, the W2 with yarn split roller.
High speed winding shaping system, forming good,easy to unwinding, the biggest capacity can be processing to 6kg.
Through the inspection of yarn state, if the yarn is breaking or winding uglily,yarn cutter cut the feeding original yarn directly, reduce the waste of yarn.
The groove oiling tankers, oil amount even, use invertor for adjusting speed, the customer can arbitrarily regulate and meet the requirements of production.
Installed two smoke suction pipeline, the system can clear the yarn fume while processing, ensure the environment more cleaner.
Use the high quality of electrical components, to ensure that equipment in use process operation more reliable, more stable.
