RFJA33 Air Jet Terry Looms

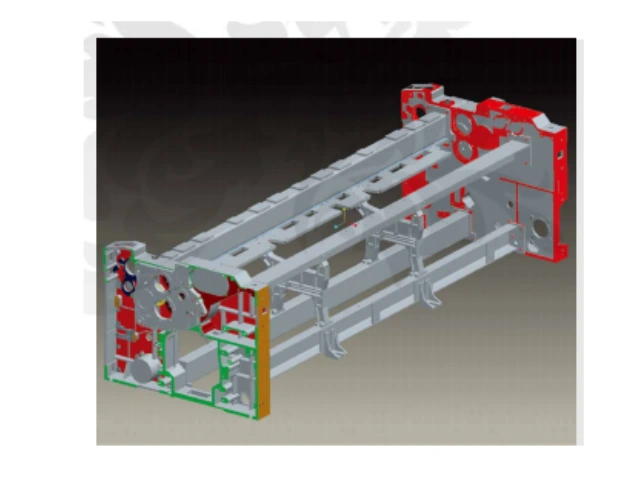

RFJA series air jet terry looms succeed the technology of RFJA series air jet looms, is a model of high speed air jet terry looms with the design concept of high speed, lower consumption and wide weaving range. This model looms are designed through completely new three-dimension technology, computer analysis & assembly, and utilized the virtual technology in designing of the insertion, shedding, beating and looping. It is the first manufacturer of air jet terry looms in China.

These looms are designed using cutting-edge three-dimensional technology, computer analysis, and assembly. We have also utilized virtual technology in the design of the insertion, shedding, beating, and looping processes. This ensures optimal performance, efficiency, and versatility.

Specification

Specification of RFJA33 Air Jet Terry Looms


Item

Specifications

Options

Width

Reed Width

190cm, 210cm, 230cm, 260cm, 280cm, 320cm, 340cm


Working Width

Reed width minus 0-60cm (190-230cm)

Reed width minus 0-60cm (above 260cm)


Weft Selector

4 colors or 6 colors at will


Power

Start Type

Super motor


Operation

Stop controlled by magnetic brake directly


Buttons on both sides


Beating

link lever

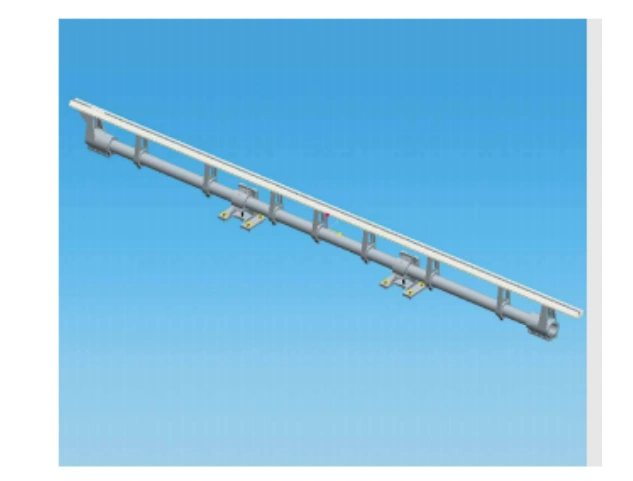

Insertion

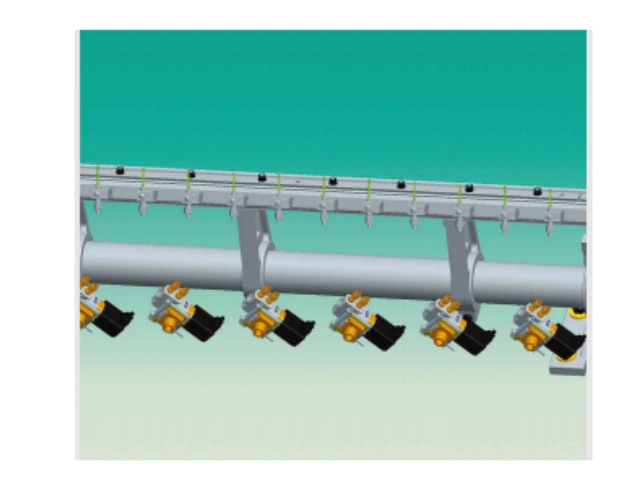

Main nozzles and sub-nozzles

Stretch nozzles

Profile double reed

ABS

Relay main nozzle


Shedding

Electronic dobby, max 20 shafts


Electronic Jacquard


Let-off

Electronic continuous positive let-off


Ground beam flange: dia 800mm

Pile beam flange: dia 1000mm

Ground beam flange: dia 91 4mm, dia 1 000mm

Pile beam flange: dia 1250mm

Take-up

Electronic take-up


Weft density: 25-300/inch


Max cloth: dia 600mm

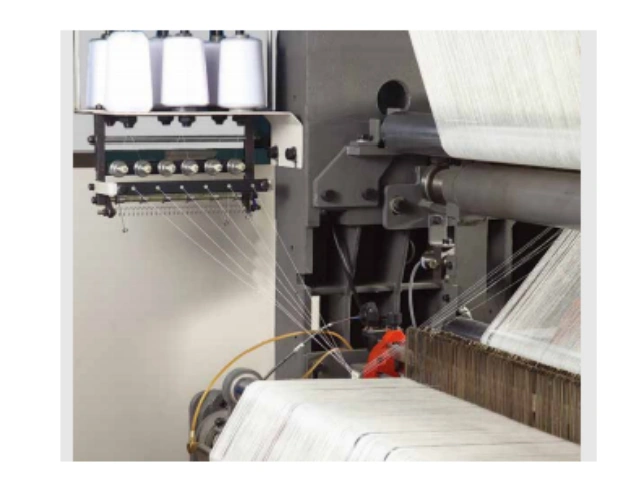

Cone Stand

Console stand for 8 cones (4 colors)

Console stand for 12 cones (6 colors)

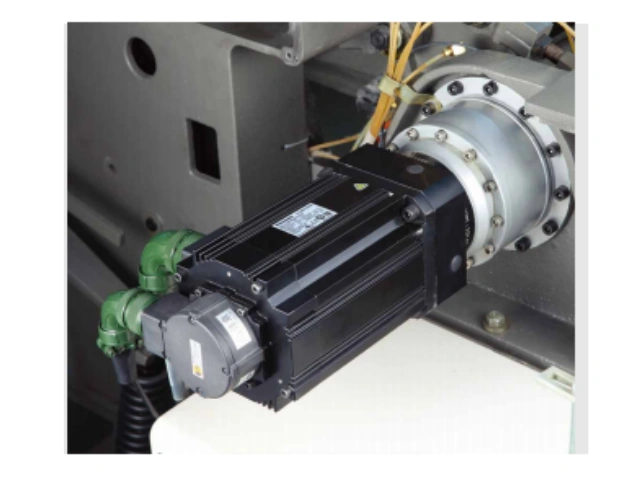

Terry Motion

Servo terry motion: dynamic terry control Loop formation by fabric movement. Automatic loop formation from 3 to 7 picks at will.


Loop length: 0-28mm at will, the accuracy of two neighboring loops' height differences can be 0.1mm max


Selvage

Mechanical


Yarn End Treatment

Waste selvage winding roller

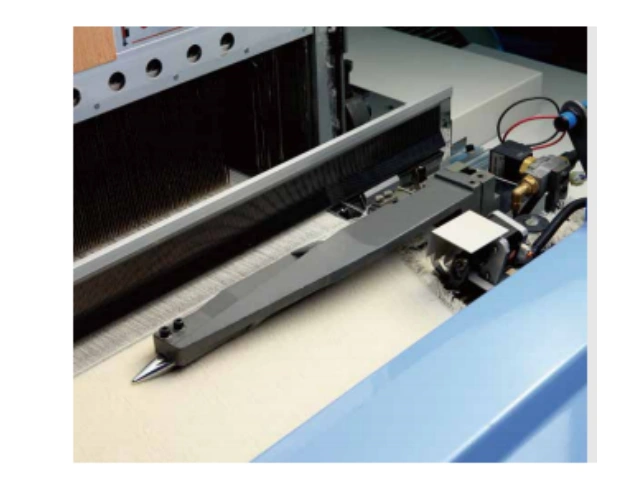

Weft Cutter

LH mechanical

RH electronic

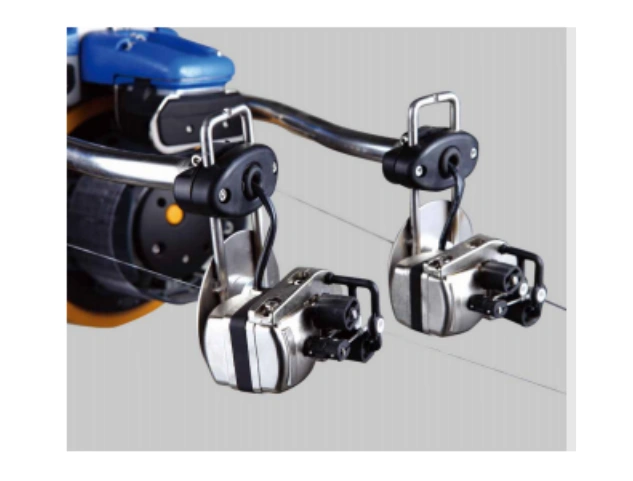

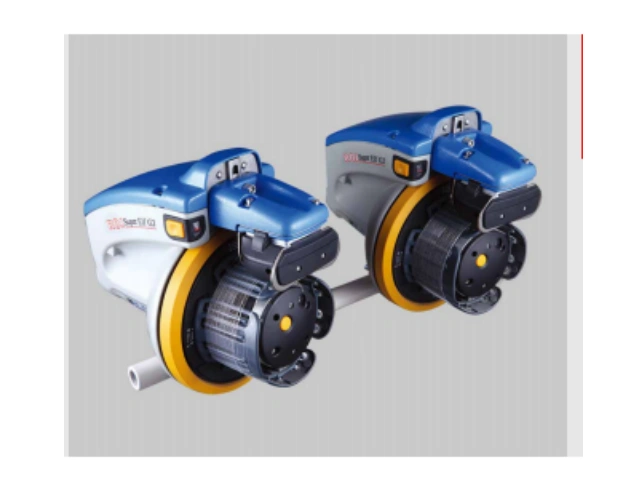

Weft Feeder

Vibration type

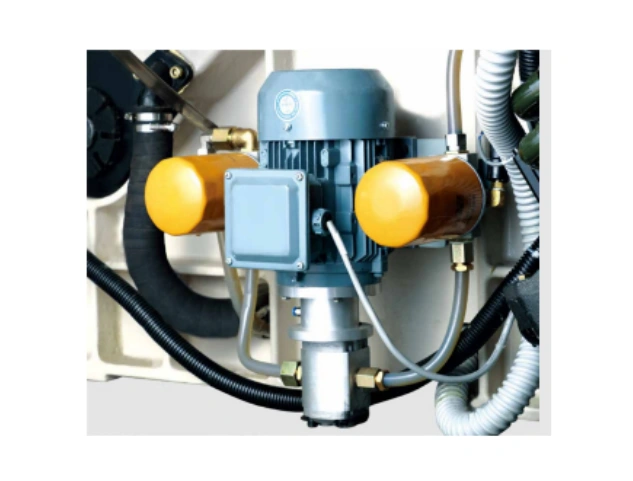

Lubrication

Main transmission: oil bath, other components: automatic centralization greasing


Stop Motion

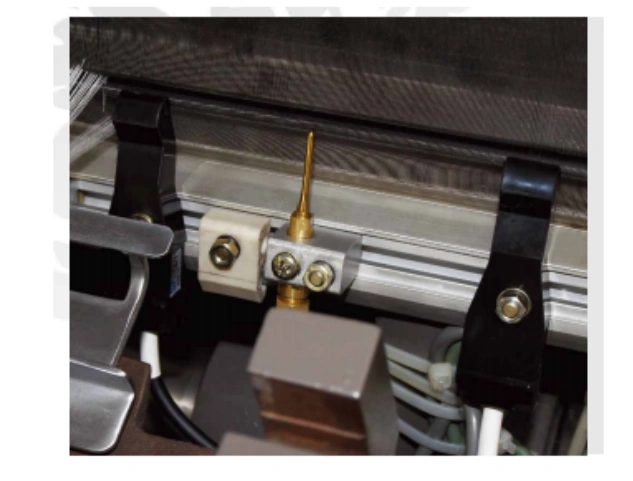

Weft: photoelectric weft sensor, double sensors


Warp: two rows and two lines of electric stop motion


Other: auto stop motion for selvage yarn


Stop indicating: stop reason on panel, 4 color lamps


Automatic

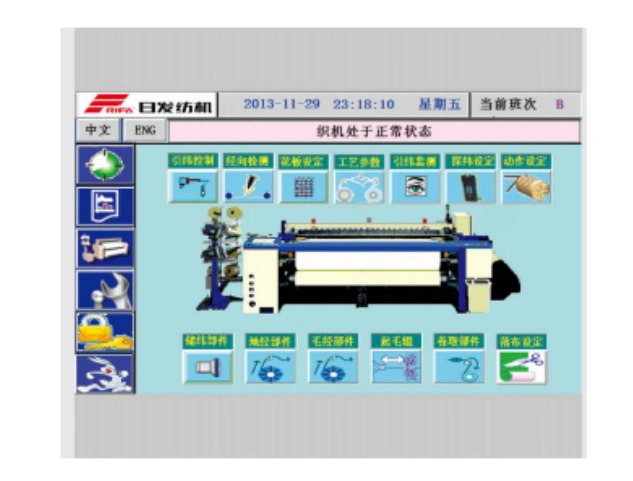

Control: multi-function microcomputer system, with parameter setting/control/monitor/autodiagnosis/artificial intelligence interface


Inching by inverter (forward and reverse)


Others: monitor output terminal


Auto control air jet




Dimensions of RFJA33 Air Jet Terry Looms

RFJA33 Air Jet Terry Looms

R/S

A

B

C

W

B1

B2

190

1900

2460

2385

4578

210

2100

2660

2585

4778

1330

230

2300

2860

2785

4978

1430

260

2600

3160

3085

5278

1090

280

2800

3360

3285

5478

1090

320

3200

3760

3685

5878

1090

340

3400

3960

3885

6078

1090


Features

Features of RFJA33 Air Jet Terry Looms

1
1

High speed.


2
2

Reliable quality.


3
3

Wide weaveability.


4
4

Perfect environmental protection.


5
5

Easy operating.
