RFJW03 Water Jet Looms

RFJW03 series water jet loom is suitable for weaving light and medium-thickness fabrics. Drawing on Rifa's experience in development of other water jet looms, the design is optimized, the weaving speed and quality of the loom are improved. The loom has varied configurations, it can meet the weaving needs of different customers and is a cost-effective loom.

The RFJW03 series water jet loom offers a variety of configurations, allowing it to meet the diverse weaving needs of our customers. Whether you're producing delicate, lightweight fabrics or more robust, medium-weight textiles, this loom can be tailored to your specific requirements.

Specification

Specification of RFJW03 Water Jet Looms

Item

Specifications

Width

Reed Width

190, 210, 230, 280, 320, 340, 360cm

Working Width

Reed width minus 0-70cm

Weft Color

2 colors at will

Power

Start Mode

Super motor / Direct motor

Motor Capacity

2.7kW, 3.0kW, 3.7kW, 4.5kW

Working

Brake through electromagnetism clutch

Buttons (prepare, start, stop, forwarder inching, reverse inching, reverse one circle)

Automatic pick finding

Beating

Lineal beating mechanism

Insertion

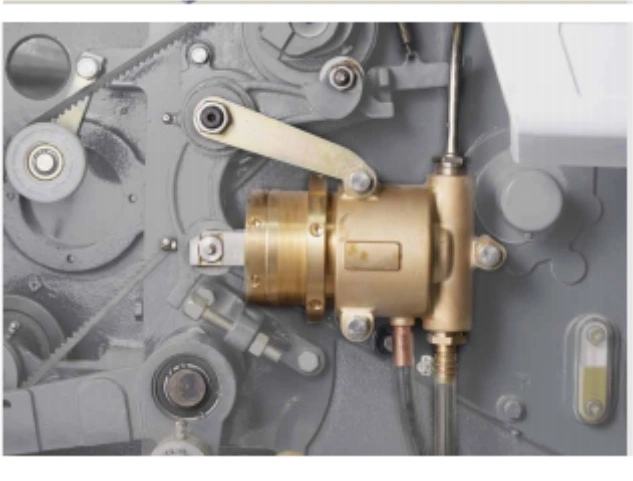

Pump

Plunger pump

Nozzle

Annular nozzle manostat (ceramics jet needle)

Accumulator

Vibration electric drum accumulator (2 color)

Options: WBS Electric weft

Options: Electric weft Drawing device

Shedding Device

Crank: 4 heald frames, 6 heald frames

Cam: 10 heald frames

Dobby: 16 heald frames

Jacquard

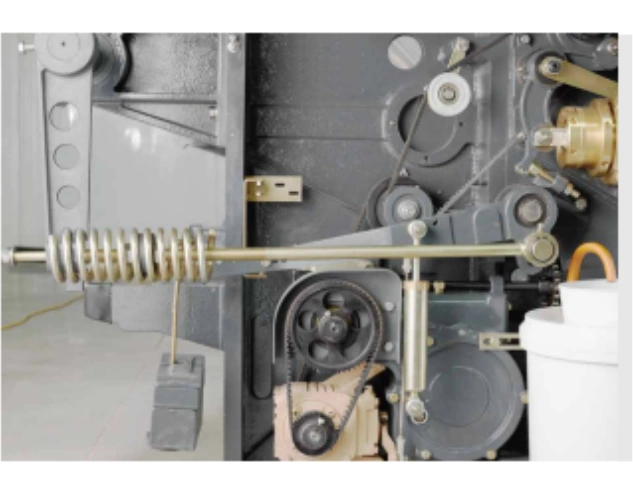

Let - off


Electronic or mechanical

Max Tension

2500N, 5000N

Back-roller

Standard

Flange Diameter

800mm, 1000mm

Options: 1000mm

Take - up


Electronic or mechanical

Cloth Diameter

520mm

Cloth Route

Type S1, Type S2

Cone Stand

4 cone stand

Selvage

Planet gear

Handling of Yarn End

Spindle false twisting

Weft Cutter

Mechanical

Temple

Up-mounted double temple shaft with double rings

Dehydration

Tiny crevice pipe suction (Mechanical fan)

Stop motion

Weft Stop

OPF photoelectric sensor

Display of Stop Reasons

Screen panel

Mult-function 4-light indicating

Automatic

Main Control

Auto control, fault removal, itself a diagnosis

Showing working info and maintenance data

Net

Centralizing net connection, loom supervisory system


Features

Features of RFJW03 Water Jet Looms

1
1

High-Speed Weaving: The RFJW03 Water Jet Loom uses a water jet mechanism for high-speed weaving, significantly increasing production efficiency and making it ideal for mass production.

2
2

Versatility: This loom can handle a variety of yarn types, including synthetic and blended yarns, allowing for the production of a wide range of fabric types.

3
3

Energy Efficiency: The RFJW03 Water Jet Loom is designed to use water efficiently, reducing energy consumption and making it a more environmentally friendly option for textile production. Its design also minimizes water waste, contributing to its overall sustainability.
