Items | Parameters |
Applicable Yarn Range | Ne3/2~160/2 cotton yarn, a polyester-cotton blend, wool yarn, blended yarn, etc. |
No. of Sections | ≤13, Standard 10 sections |
Twist Range | 80~2500T/m (Stepless-adjusted) |
Twisting Direction | S or z twist |
Winding Travel Route | 152mm (Stepless-adjustable) |
Winding Angle | Adjustable at will |
Rated Power | 22kW+1.3kW+2.5kW |
Winding Bobbin | Bobbin length170±1mm, plate 19mm, 26mm, 28mm, 34mm, 40mm, 45.5Mm, 55mm, 58.5Mm, 67.5Mm, 68mm |

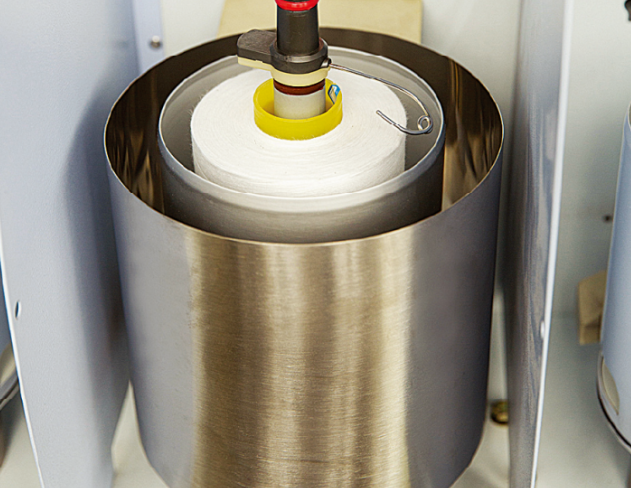

Supply Bobbin Size | Ø37.5×Ø43.5×170(230) |
Spindle Tensioner | Capsule-type |
Start Mode | Soft start |
Operation Form | Double-side and single-layer, pneumatic yarn drawing |

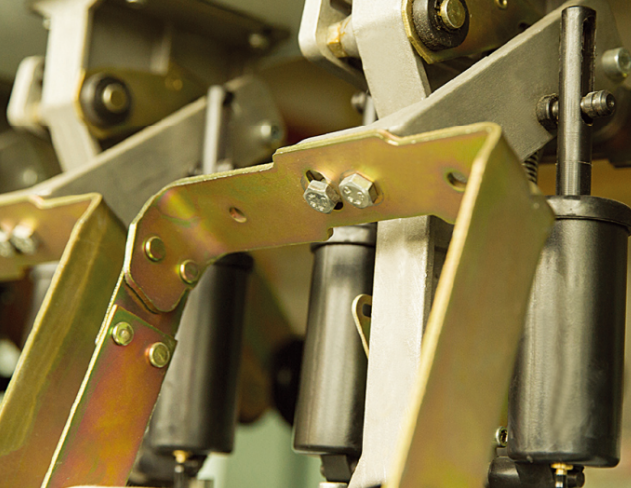

Bobbin Lifting | Single spindle delayed pneumatic lifting |
Winding Diameter | MaxØ280mm |
Winding Speed | Max 80 m/min |
Spindle Driving Mode | Tangential belt drive directly, step-less adjust speed with inverter |
Winding Mode | The power-off synchronous electronic system |
Items | Parameters |
Spindle Gauge | 208mm, 231mm, 260mm, 297mm |
Single Section Length | 2110mm |
Spindle Type | 126, 136, 146, 156, 166, 196 |
No. of Spindles / Section | 20, 18, 16, 14 |
Spindle Speed Range | 5000-14000r/min |

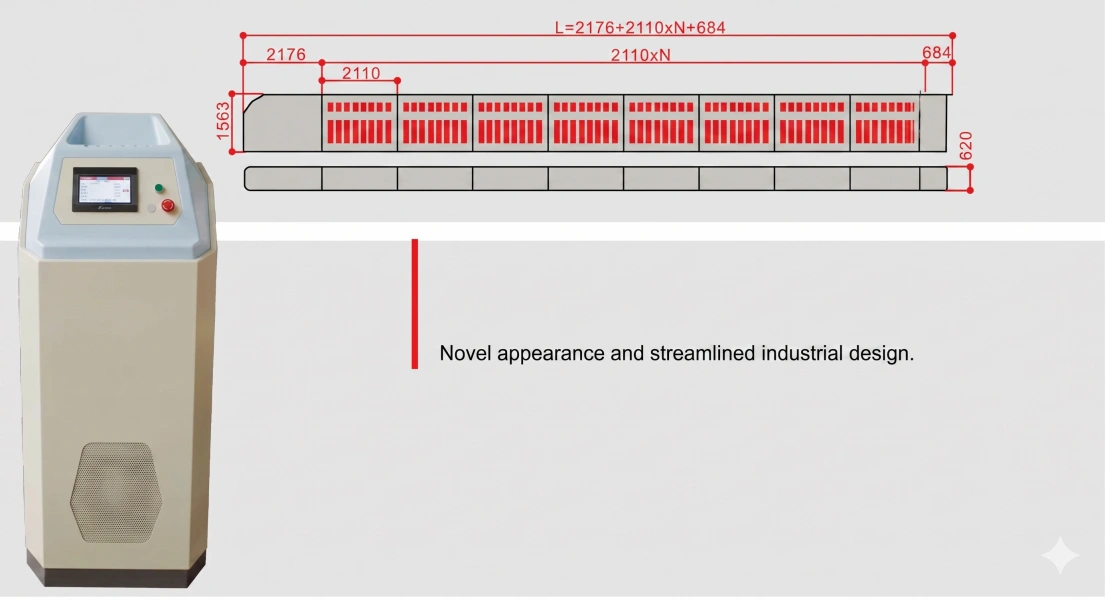

Novel appearance and streamlined industrial design.
More reasonable winding triangle area, which can expand various configurations, and improve various performance indicators of yarn.

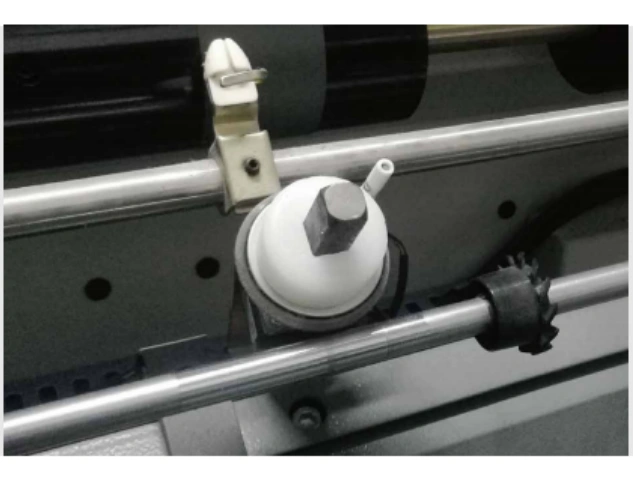

It can be equipped with unique waxing device, with one single spindle to drive wax tray to ensure waxing consistency. Speed adjustable according to different yarn, different process, ensure each yarn waxed evenly, improve the production efficiency and product quality for post process.
