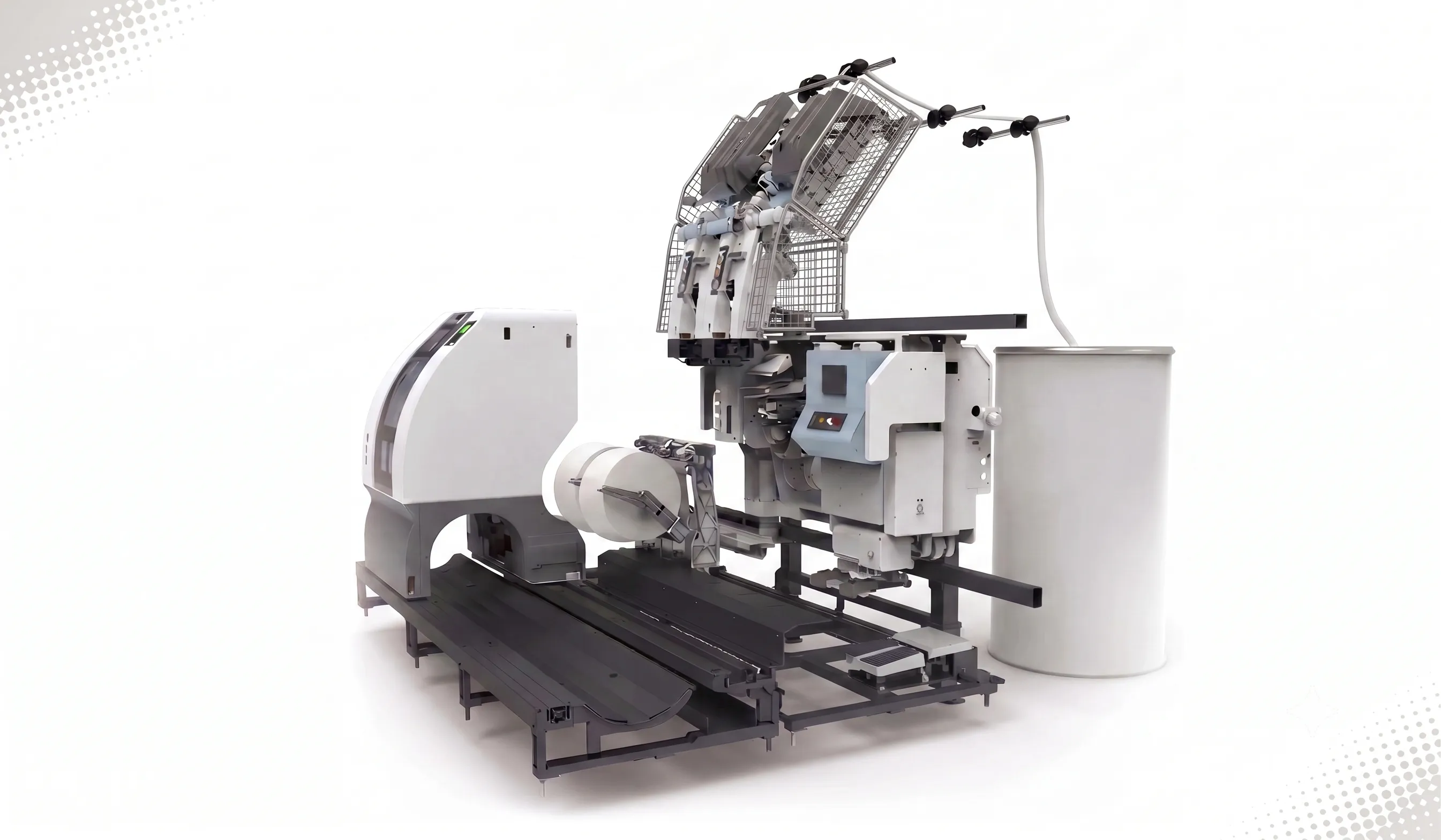

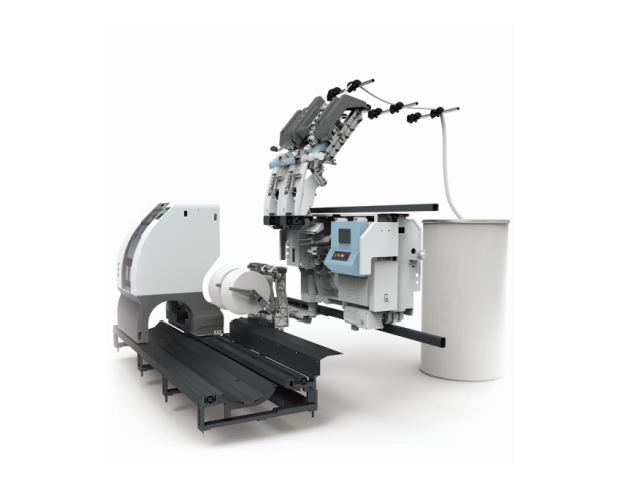

The core technical indicators of Rifa VS10 fully automatic air jet vortex spinning machine have reached the level of imported equipment.

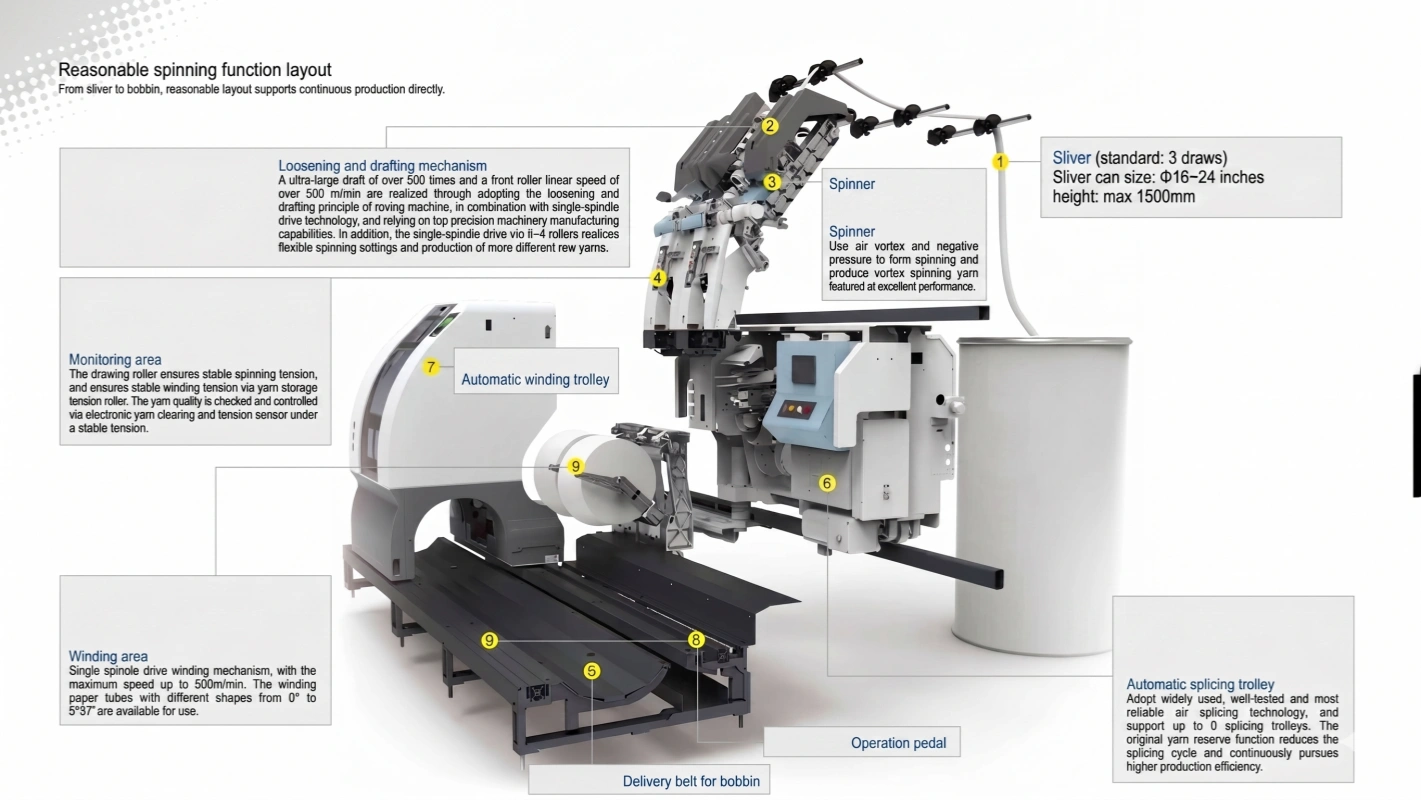

Reasonable spinning function layout
Comprehensive control of yarn quality

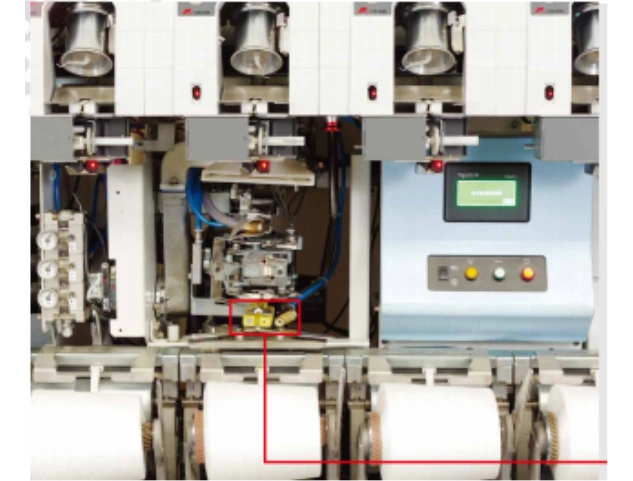

Highly automatic spinning auxiliary device
Original high-speed winding unit
Ergonomic optimization design
Machine Parameters | |
| Total Drafting Multiple | Max. 300 |
| Maximum delivery speed | 500m/min |
| Spindle | Z twist spinning cavity |
| Bobbin taper | 0°/4°20′/5°5 |
| Maximum winding diameter | 300mm |
| Yarn tube storage capacity | 104 pieces |
| Waxing device | Maximum thickness of wax block is 45mm, driven independently |

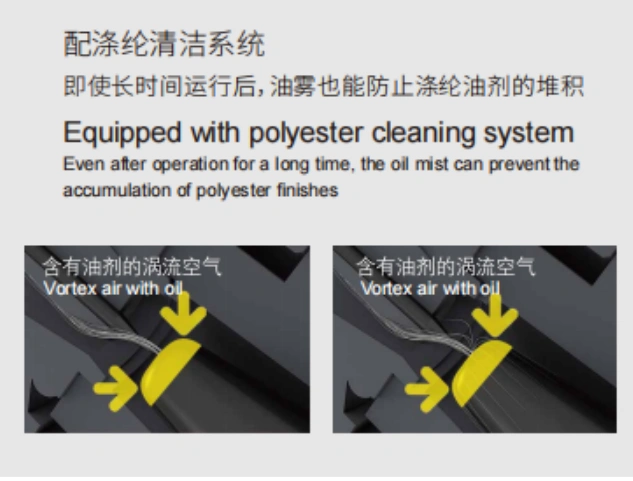

| Polyester fiber automatic cleaning system | A system for spinning 100% polyester and polyester blends of 50% or above |
| Spindle gauge | 235mm |
| Drive mode | Three, four rollers and winding unit single spindle drive |
| Automatic splicing trolley | 3 sets as standard configuration, up to 6 sets* |
| Automatic doffing trolley | 1 set |
| Yarn clearer for spinning | 1 piece/spindle |
| Yarn clearer for joint | each splicing trolley for each machine |
Machine length | |||||||||||
| Spindles | 16 | 24 | 32 | 40 | 48 | 56 | 64 | 72 | 80 | 88 | 96 |
| L(mm) | 8113 | 9993 | 11873 | 13753 | 15633 | 17513 | 19393 | 21273 | 23153 | 25033 | 26913 |
Wear resistance, anti-pilling, and durability to washing
Moisture absorption and quick drying
Stable weaving structure
New spinning technology：Rather than relying on the physical rotation of components, it is a new technology that completes spinning via air vortex. it is a new technology which uses an air vortex to spin out the yarn. not physical rotation parts.
The fastest spinning mode: The maximum spinning speed is 500 m/min, and the production capacity is 25 times that of ordinary ring spinning.
The most economical spinning technology: The three technological processes of roving, spinning and winding are integrated into one. Drafting→spinning→defect removal→winding are all realized on one machine.
Upper Exhauster
Under Exhauster
RIFA Textile Machinery is top-notch. Their machines are reliable, efficient, and easy to operate. Highly recommended for any textile business.
We’ve been using RIFA’s textile machinery for many years. The quality and performance are unmatched. Truly a game-changer in the textile industry.
RIFA's textile machinery is a perfect blend of innovation and durability. Their customer service is also commendable. A great investment for our company.
RIFA Textile Machinery has exceeded our expectations. Their machines are robust, user-friendly, and require minimal maintenance. A great asset to our production line.
