RFJA30 air jet loom is developed by our company which has advanced performance on the base of the merit of RFJA20 it is developed for meeting higher weaving requirement. This air jet weaving loom offers superior performance, incorporating the latest technology to ensure high-speed, efficient weaving. It is designed to handle a wide range of fabrics, making it a versatile solution for various textile applications.

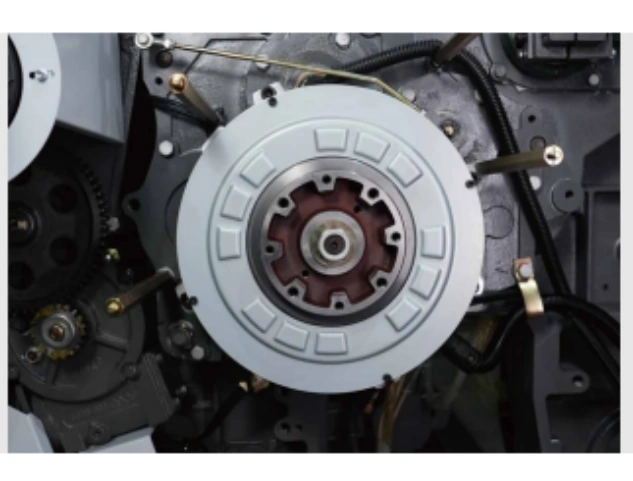

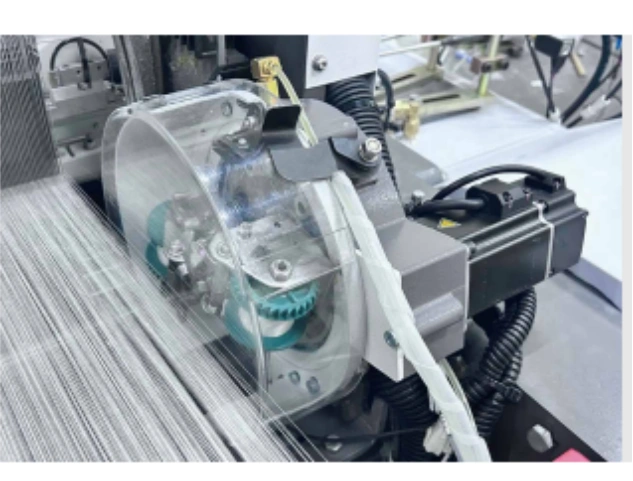

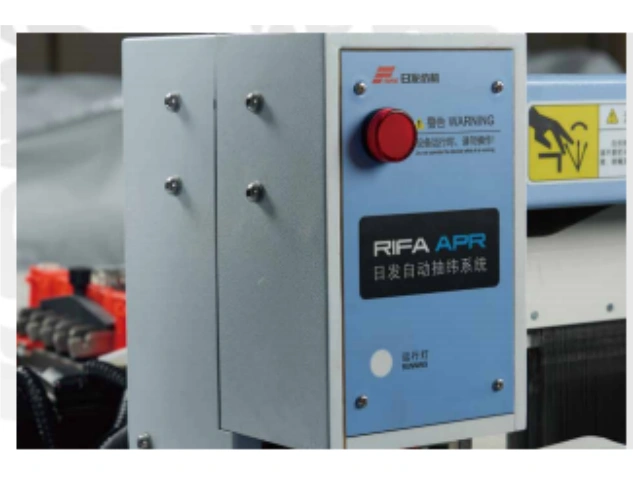

Item | Specification | Optional |
Reed Space | Nominal: 150, 170, 190, 210, 230, 260, 280, 340, 360cm | |
Useful range: reduction from nominal 0～60cm (150-260cm) reduction from nominal 0～80cm (Above 280cm) | ||
Yarn Range | Spun: Ne100～Ne2.5 | |
Filament: 22dtex～1350dtex | ||
Weft Selection | 2-color, 4-color, 6-color with extension function | |
Drive | The magnetic brake control position stops directly | |
Direct drive main motor 2.2kW (crank shedding), 3.0kW (cam shedding), 3.7kW (Dobby shedding), 6.5kW (Jacquard shedding) | ||
Push button operated by both hands | ||
Weft Insertion | Insertion rate: max 2300 m/min | |
The main nozzle and sub nozzle combined system | Stretch nozzle | |
Profile reed | ABSweft break | |
Auxiliary main nozzle | ||
Shedding | Crank shedding: 4&6 shafts | |
Positive cam shedding: 10 shafts max | ||
Dobby shedding: 16 shafts max | ||
Jacquard shedding | ||
Let Off | Negative or positive let-off | |
Double roller electronic let-off with automatic reverse function | Double beam | |
Flange diameter Ф800mm | Ф914mm, Ф1000mm | |
Take-Up | Electronic take-up | |
Pick density: 25～300picks/inch, special 15～300picks/inch | ||
Max take-up diameter: Ф520mm (crank shedding) Ф600mm (cam, dobby, Jacquard shedding) | ||
Beating | Crank-type beating, multiple sley sword beating | |
4 links (narrow width), 6 links(wide width) | ||
Length Measuring | Vibratory weft accumulator | |
Accumulator | Floor-type: 4 bobbins(2-color), 8 bobbins(4-color) | |
Bobbin Frame | Planetary gear leno selvage | |
Selvage | 2 rollers take-up; gear take-up | |
Waste Selvage | Mechanical weft cutter, Electronic weft cutter | |
Weft Cutter | Oil bath system for main driving parts, centralized lubrication system(Manual grease) | Automatic lubrication system |
Auto-Stop Motion | Weft: photoelectric double weft sensor | |
Warp: Electronic 6-row contact bar system | ||
Others: Automatic stop for leno yarn and waste salvage yarn break | ||
Stop reason Indication: Indication on the control panel and 4 color indicating lamp | ||
Automatic | Control: Multiple-function computer control system with data setting/control/ monitor/self-diagnose/artificial intelligence interface | |
Pick finding: automatic pick finding | ||
Slow motion (corotation and reverse) by inverter | ||
Others: Monitor output terminal | ||
Memorycard system | ||
Jet automatic control |
| Flange dia | Φ800 |
| L | 1958 |
Note:
1) L represents Φ The approximate size of the 800 side plate, as for other detailed dimensions, please consult our company directly.
2) The diameter of the side plate is Φ 914 or Φ At 1000, the size of L in the diagram is the same.
Nominal reed width (inches) | 150 (60) | 170 (67) | 190 (75) | 210 (83) | 230 (91) | 260 (102) | 280 (110) | 340 (134) | 360 (142) | |
W(2C) | Crank opening | 3700 | 3900 | 4100 | 4300 | 4500 | 4800 | 5000 | 5600 | 5800 |
Positive cam opening | 4100 | 4300 | 4500 | 4700 | 4900 | 5200 | 5400 | 6000 | 6200 | |
Downward active multi-arm | 4100 | 4300 | 4500 | 4700 | 4900 | 5200 | 5400 | 6000 | 6200 | |
A | 1500 | 1700 | 1900 | 2100 | 2300 | 2600 | 2800 | 3400 | 3600 | |
B | 2110 | 2310 | 2510 | 2710 | 2910 | 3210 | 3410 | 4010 | 4210 | |
Note: W is the approximate size for double spraying. For detailed dimensions of other specifications, please consult our company directly.
The air jet loom adopts new type electronic control system.

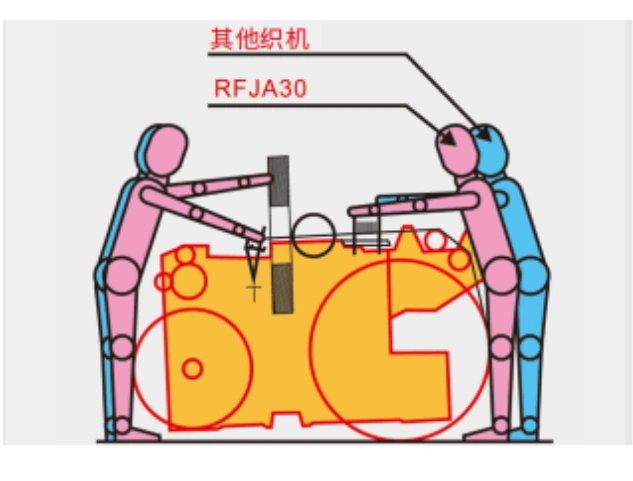

New designed frame structure.
New designed low vibration beating balance system.
New designed air bag structure of main nozzle and stretch nozzle.
New designed double back rest let-off structure.
Higher efficiency weft insertion system.
The air jet weaving machine adopts super power-saving electromagnetic valves and nozzles.
Powerful weaving expert system.

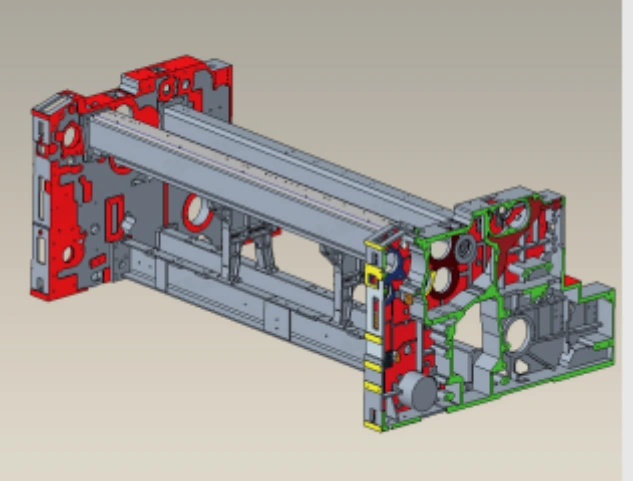

The air jet weaving machine adopts high rigid frame structure, big diameter beam gear and positive let-off driving beam with bath lubrication, which make loom suit for the high density fabric at high speed. Both side cam box wall board and frame structure have been optimized, it well improved resistance to vibration and dependability, and well ensures the loom work in high speed; wider width and low noise.

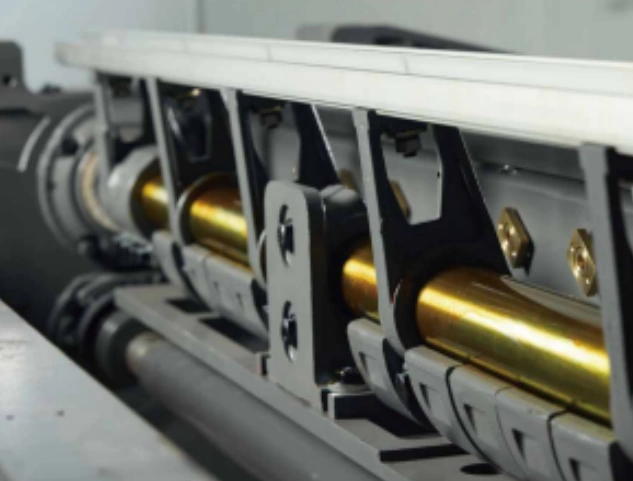

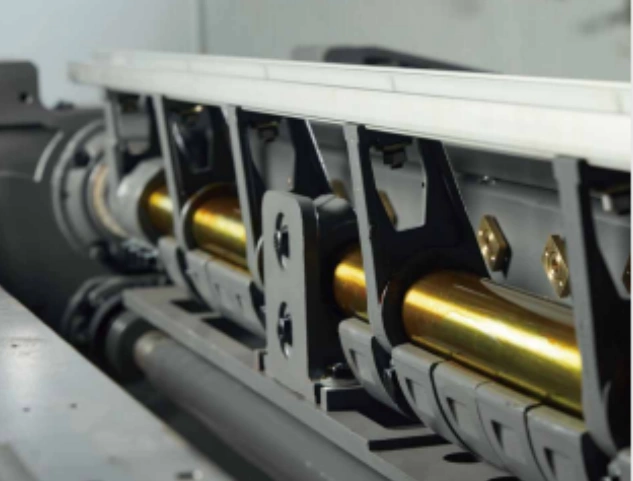

The beating axis adopted new designed beating dynamic balance system, it improved the beating-up force of the loom, and the vibration of the whole machine is reduced, it is more effectively ensured to weave the high-count and highdensity fabric.

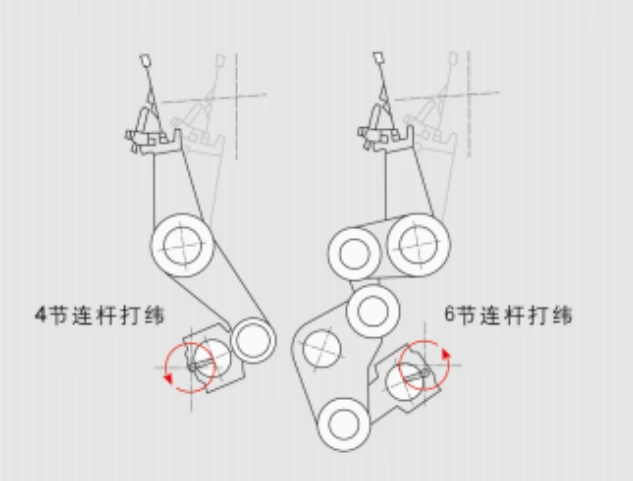

A 4-link beating motion that works excellently at ultra-high speed and a short connecting rod are used for standard looms. A 6-link beating motion with more time allowance for filling insertion is used for wider looms, thus achieving more stable filling insetion.

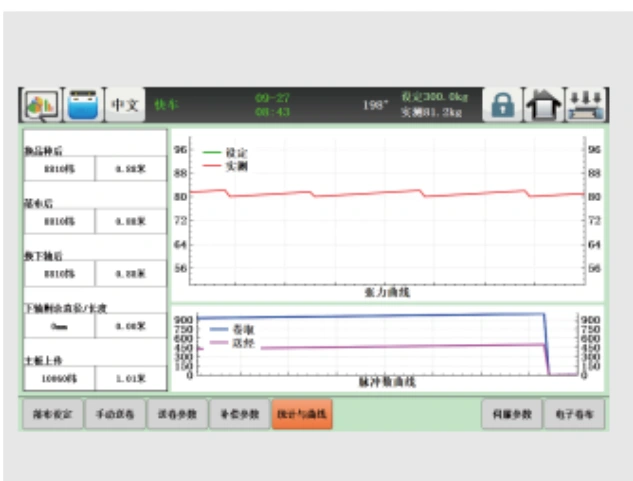

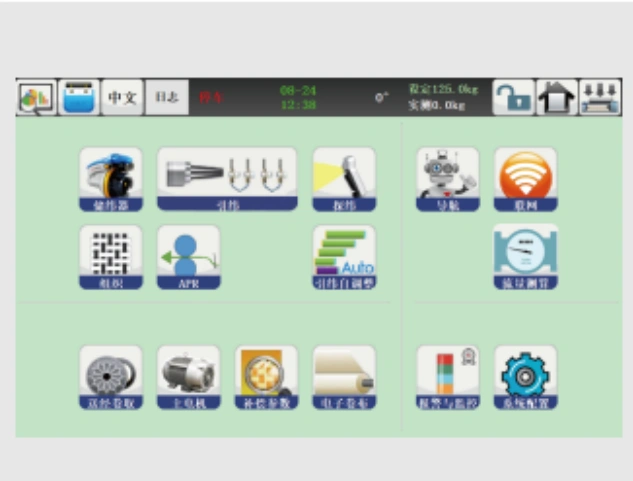

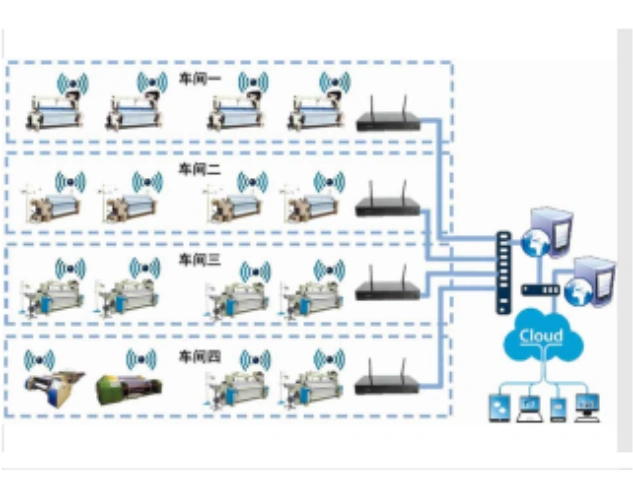

The RIFA weaving machine features a user-friendly graphical interface with clear icons, enabling simple operation and easy modification of pre-saved fabric weaving parameters. Its advanced automatic algorithm calculates air consumption in real time, enhancing factory management digitization. Furthermore, the system allows for online adjustments of weft insertion angle and air pressure, effectively minimizing air consumption.
Warp tension can be adjusted automatically when loom is started, this can avoid tension change during Ioom stops and further avoid stop marks.

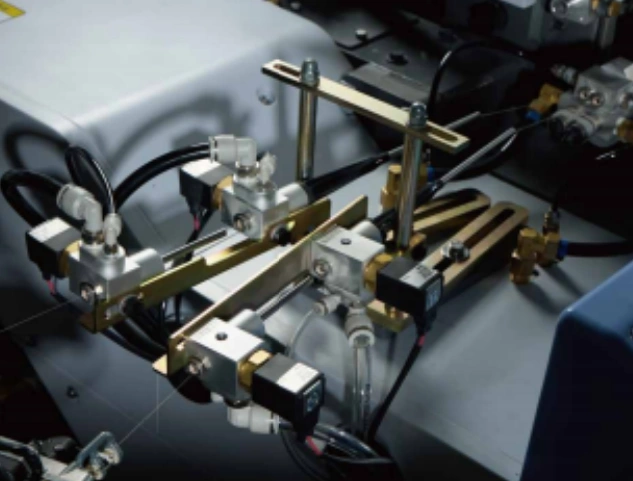

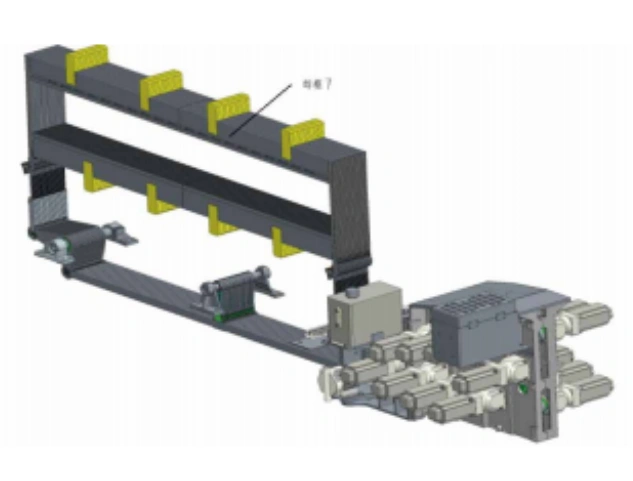

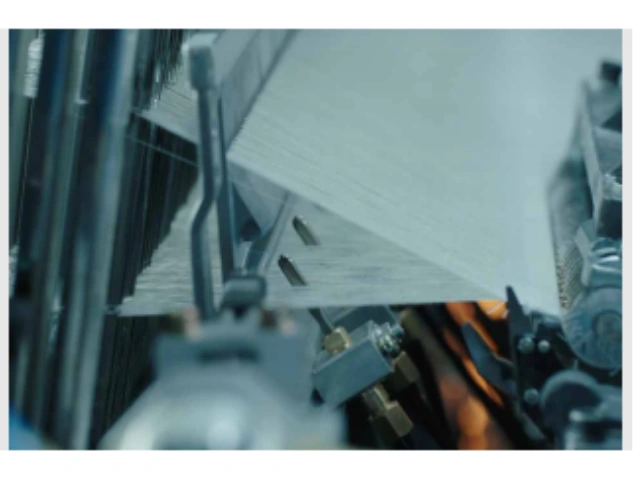

A new type electromagnetic valve manifold is with high sensitivity, this can ensure a stable air pressure during accurate jetting and stable weft insertion at high speed. The integration of stay pin and sub-air bag connects new type electromagnetic valve, this can shorten the distance from valve to nozzle, and improve machine speed and efficiency.
