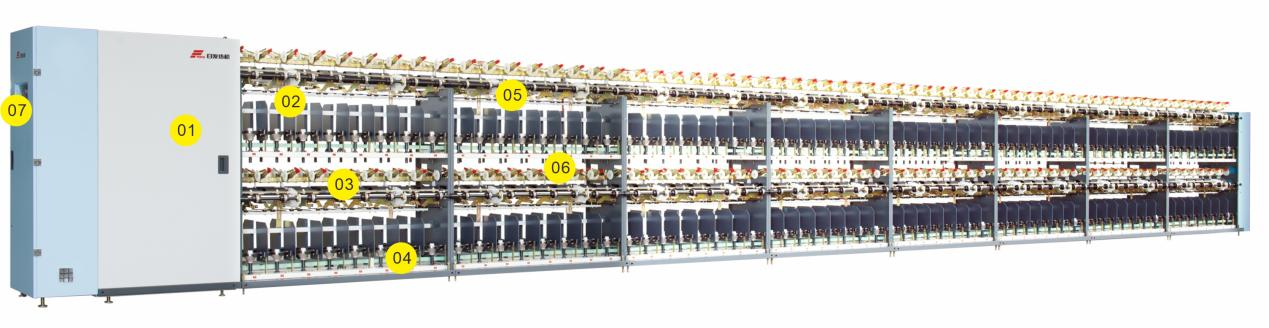

ITEMS | PARAMETERS |
Operation Mode | Double sides and double layers, guiding wire for threading |
Number Of Spindles | 32 spindle multiples, the standard type of 256 spindles |
Spindle Pitch | 225mm |
Spindle Speed Range | 3000-15000 r/min (Stepless adjustable) |
Twist Range | 80~5000T/m (Stepless adjustable) |
Twist Direction | S or Z twist |
Spindle Tensioner | Combination of multi-section tensioner ball and tension ring |
Feeding Bobbin Dimension ( Inner Diameter * Outer Diameter* Length) | Ø37×Ø42×320cm |
Take Up Bobbin Dimension | Parallel tube; length of 172 cm |
Traverse Length | Max. 160mm (Stepless adjustable) |

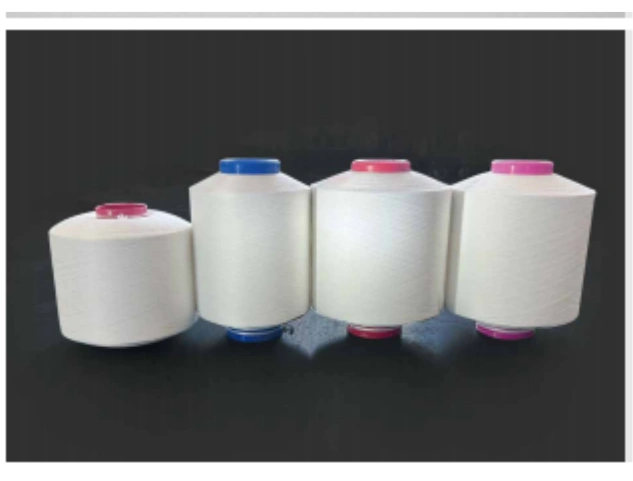

Package Capacity | 1500 g |
Installation Power | 19.1KW |
Starting Mode | Soft start |
Winding Angle | 5°~25°(Stepless adjustable) |
Take Up Speed | 40 m/min – max. 120 m/min |
Suitable Yarn Count | 10D~300D filament fiber |

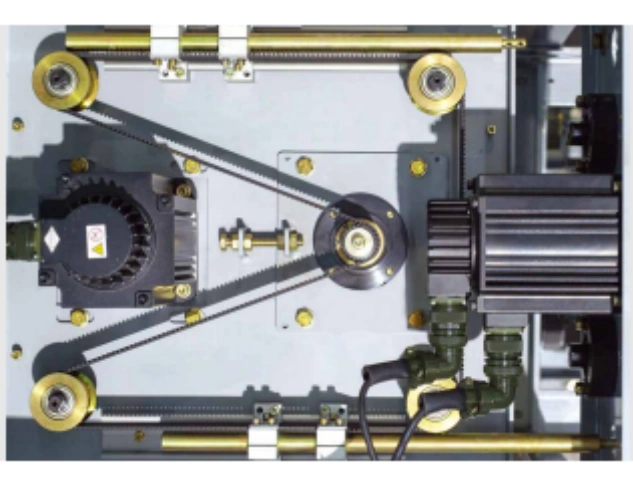

Spindle Driving Mode | Belt circulation drive |
Spindle Fixture | Magnetic fixture |
Take Up Tension | Adjust the wrapping angle of yarn on the over-feeding roller |
Machine Dimension (Excluding Overhead Blower) | 16340X750X1850/1950 mm |

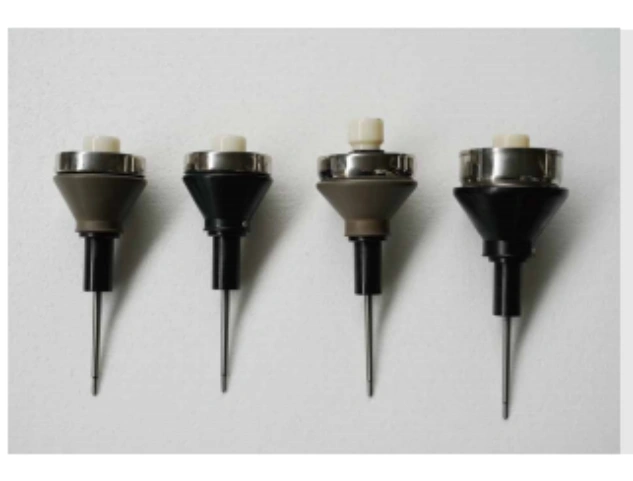

High quality spindles, for higher speed, and lower energy consumption.

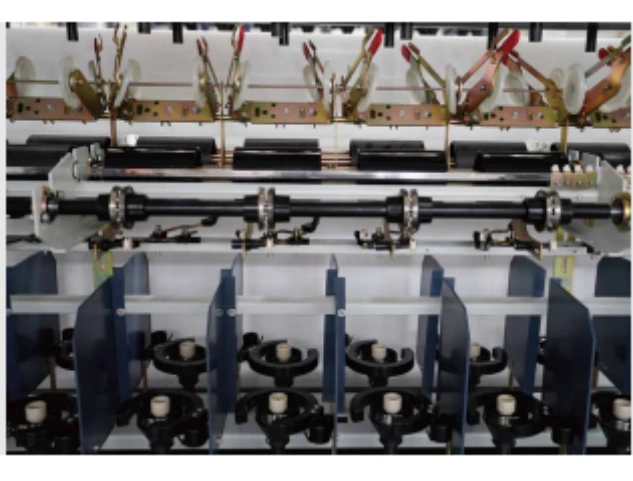

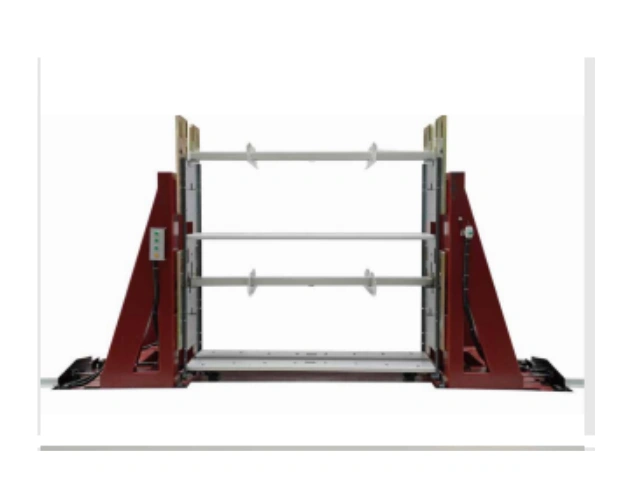

Optimized structure of bobbin creel is suitable for higher delivery speed and larger capacity.

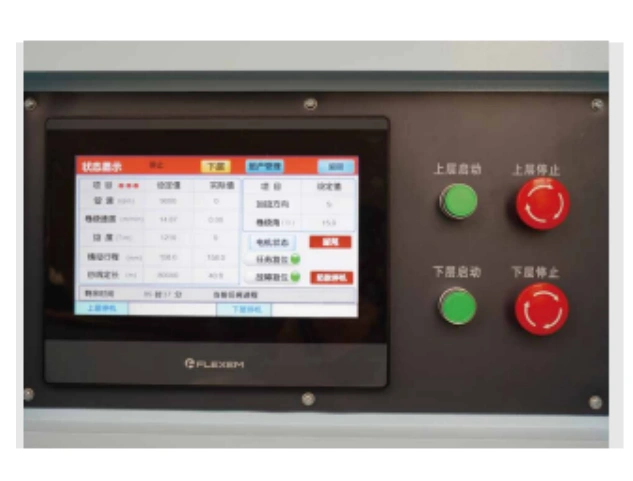

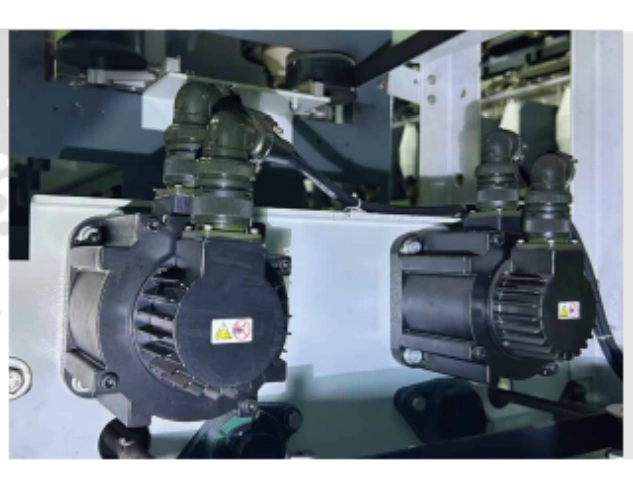

More electronic technology applications make the equipment simple and easy to use.

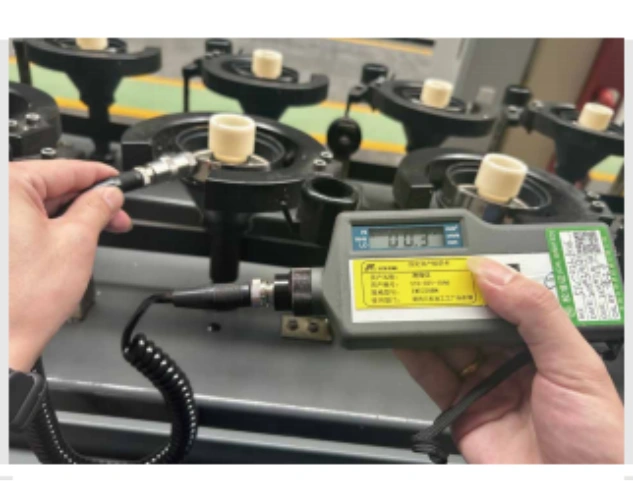

Strict quality control, and stable equipment performance.
