RFAD10 full-automatic drawing-in machine is a kind of drawing-in equipment based on seed yarn mode. Drawing-in is not related to the loom beam, so pre-drawing can be conducted in advance, pre-drawing is parallel to the previous preparation procedure. The automatic warp drawing machine can quickly respond to market demand. After the completion of the drawing-in operation, the shuttleless weaving machine can be stored OEM production can be achieved, and the transportation is convenient. The whole shuttleless weaving machine has low energy consumption. The instantaneous power is less than 1KW, the gas consumption is 0.3m³/min, and the use cost is extremely low.
Item | Content | Remark |
Working with | 2300mm, 2800mm, 3600mm | Series |
Yarn count | Cotton/TC | |
Speed | 135 Times/min | Instant fastest |
Heald | J, C, O | Optional |
Heald height | 260mm—382mm | Adjustable |
Heald thickness | 0.2mm, 0.3mm | Adjustable |
Hole size | 5.5x1.2mm-8x3.8mm | Adjustable |
Heald stock | 2 lines feed | |
Heald lines | Max 16 lines | |
Dropper type | closed | |
Dropper lines | 6 lines | |
Dropper width | 11mm | |
Dropper length | 145mm, 165mm, 180mm | Adjustable |
Dropper thickness | 0.2mm, 0.3mm, 0.4mm, 0.5mm | Optional |
Reed type | Standard or profiled reeds | |
Dent density | 15～75 dents/inch | |
Lease | Lease 2 groups signal 4 lines | |
Electric control | PLC, controller of movement & vision | |
Input system | Computer touching screen | |
Driving | Servo motor, cylinder | |
Power | 3-hp 380V, 50/60HZ, 3.0kW | |
Pneumatic | 0.3m³/min, 0.4-0.7Mpa. | |
Harness | Standard supply of 2 sets | |
Remark: The actual drawing speed is related to weaving design, accessories, working surroundings, quantity of workers, and harness transport cart. More total warp ends, better drawing efficiency. | ||
Item | Specification | L=Length (mm) | W=Width (mm) | H=Height (mm) | Weight (kg) |
Drawing machine | RFAD10-230 | 6100 | 1600 | 1700 | 1400 (not including cart) |
RFAD10-280 | 7100 | 1600 | 1700 | 1490 (not including cart) | |
RFAD10-360 | 8500 | 1600 | 1700 | 1600 (not including cart) | |
Harness transport car | 230cart | 3000 | 650 | 1300 | 180 |
280cart | 3700 | 650 | 1300 | 197 | |
360cart | 4300 | 650 | 1300 | 223 |
This automatic warp drawing machine adopts seed-yarn drawing technology. It does not matter to sizing quality, can make drawing-in in advance, store and transport.
Warp drawing-in speed:135 ends/minute max. It is easy to do maintenance with low cost.
Independent intellectual property right, completely designed by RIFA Textile.

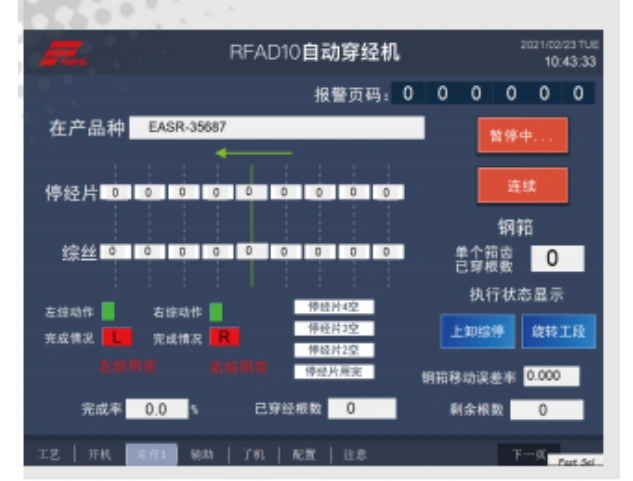

The shuttleless machine utilizes a touch screen with a user-friendly interface that displays operational status, fault diagnostics, technical data for drawing-in, and configuration settings. The advanced data processing program is adaptable to any drawing-in process, allowing for easy input of various parameters. With RFAD automatic drawing-in machine, all configuration data can be stored long-term within the equipment.

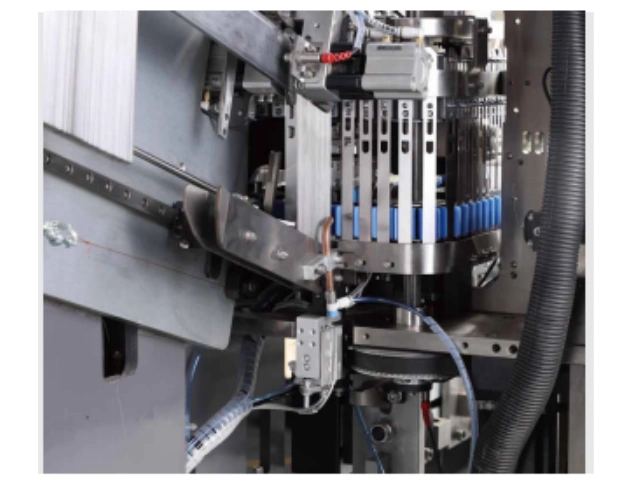

The automatic drawing-in machine is equipped with a fully automatic dropper drawing-in system, the processes of dropper placement, drawing-in, and hanging can occur simultaneously. Warp threads are drawn into the droppers as per the settings and are positioned correctly.

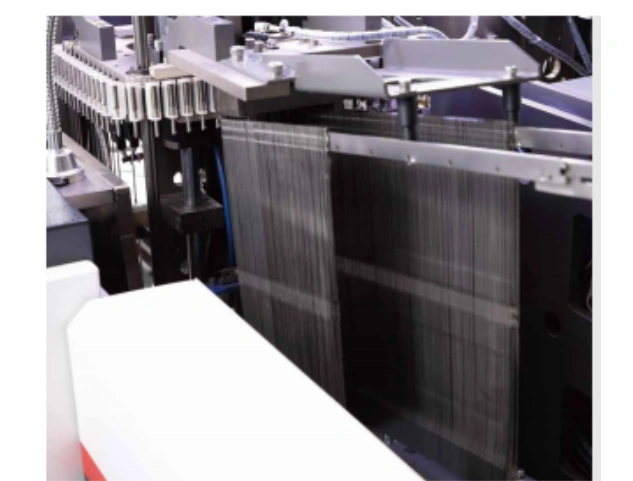

Using advanced machine vision technology and a rapid, precise photo processing system, reeds are accurately identified and positioned. This allows for high-speed drawing-in of threads in the shuttleless machine.

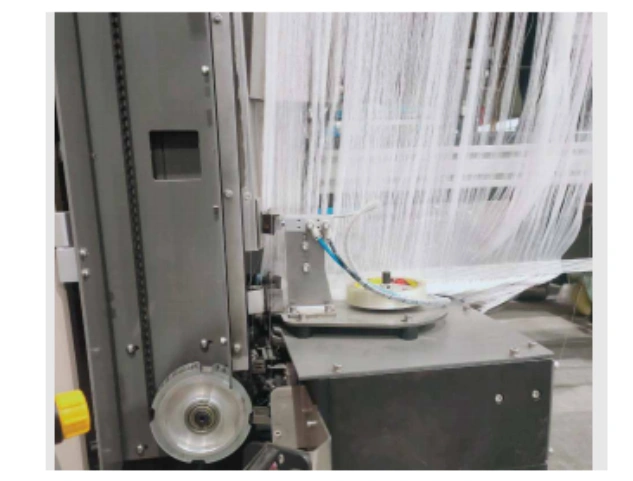

Warp threads of the shuttleless weaving machine can be efficiently drawn using specialized feeders, a cam unit, and a top-middle-bottom shifting fork.

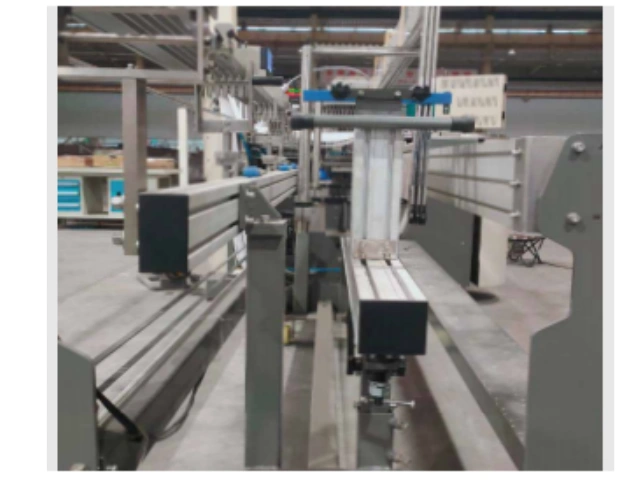

With high efficiency heald drawing-in system, heald putting-on, drawing-in and hanging-up can be processed at same time. Warp threads can be drawn in left and right healds according
to the settings, and hanged-up on correct heald frame.
Convenient trolley system can help you to move from automatic drawing-in machine to weaving area fast.
