RFAD20 Full-Automatic Drawing-In Machine

RFAD20 full-automatic drawing-in machine is equipment developed for meeting the demands for the drawing-in of chemical fiber filament yarn, the machine can be used for the drawing-in operation of suit lining, casual clothing, awning cloth, and industrial cloth.

Specification

Specification of RFAD20 Full-Automatic Drawing-In Machine

Item

Content

Remark

Basic configuration

Single mobile drawing-in machine

Adjustable options

2 creels (standard)

Speed

The maximum drawing-in speed is 260 pieces/minute

Instantaneous highest

Yarn count

① Composite filament and monofilament

② Cotton and blended yarn (carding and combing)


Yarn count

1.1-67tex, 10-600den, Nm 900-15


Warp beam

A layer of warp layer

standard configuration

1: 1 leasing module

Optional

Double-layer warp beam module

Optional

Nominal width

230cm, 360cm

Optional

The diameter of the side plate

Max 110cm


Heddle

Healdloop type

O-type steel healds or plastic heads


Type of heddle

Single row healds/double row healds


Height of heddle

220mm—330mm

Adjustable

Heddle thickness

0.25mm-0.65mm

Optional

Size of heddle eye

Minimum 5.5x1.2mm


Number of heddle rows

8, 12, 16

Optional

Heald size

1.5×9mm / 1.5×10mm


Reed

Maximum reed width

Width of the following creel


Tooth density of reed

20-350 reed teeth/10cm (standard)


Height of reed teeth

40-100mm


Height of reed

80-150mm


Reed form

Flat reed, profiled reed



Item

Content

Remark

Control

Software

Special operation control software


Input

Touch screen, USB, remote input port (optional)


Language

Chinese, English; other languages are available upon request


Power supply requirements

The power is about 1.0 kilowatts (kVA)

One-way 220V AC±10%; 50 Hz AC


Air source requirements

Input pressure

≥0.5Mpa


Air pressure fluctuation

<±0.05Mpa


Minimum air supply

≈ 1000NL/min


Barometric dew point

-17℃


Oil content

No oil basically, the content of residual oil is<1mg/Nm3 /< 0.8 ppm


Impurity content

Solid impurity content < 5 mg/m3, particle size < 5pm


Air quality

ISO 8573.1; quality level: 3


Requirements of environmental conditions

Indoor conditions

Indoor conditions are roughly the same as the conditions of common application in textile mills. Free of abrasives, such as glass dust and similar substances


Humidity

Relative humidity 30-95%, no condensation


Ambient air

Acid-free


Temperature

Operating temperature +18 to + 40°C


Lighting

700 lux is required for the working face


Ground requirements

Flatness

The maximum non-parallelism is ±15mm or the total difference is 30mm


Plane requirements

Roughness is required to be within the range of conventional concrete



Features

Features of RFAD20 Full-Automatic Drawing-In Machine

1
1

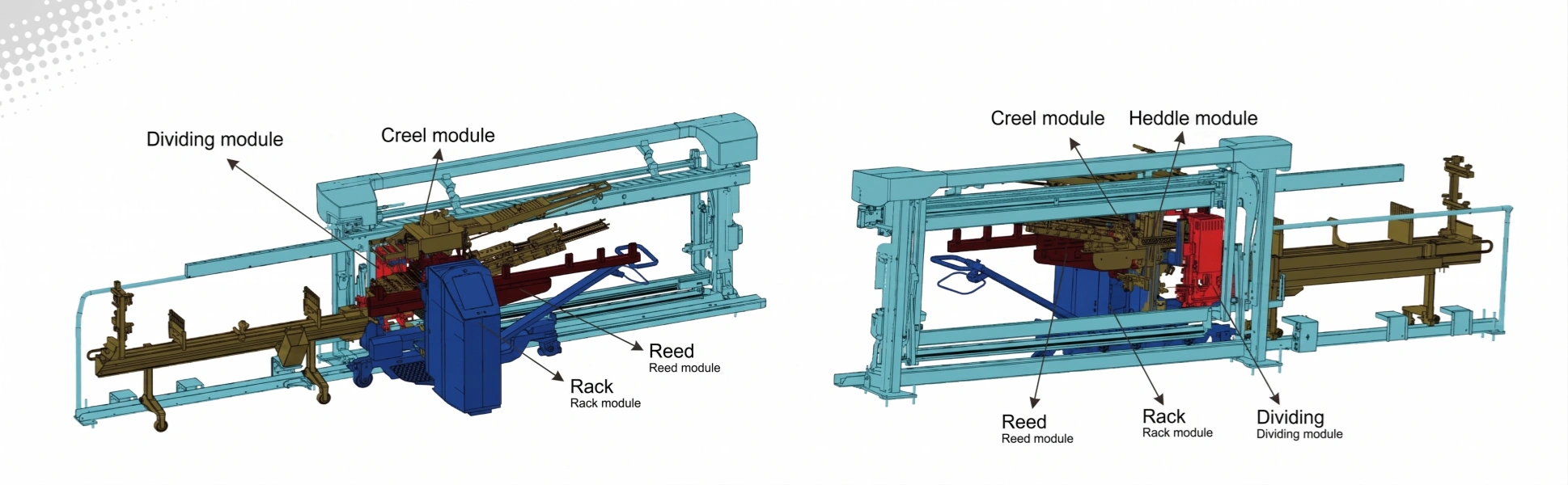

This model is composed of a mobile drawing-in machine and one or more fixed drawing-in stations, it can completely and automatically draw warp into heddle and reed, and the heddle can be discharged to up to 16 healds.

2
2

This model has very high drawing-in capacity, and the designed maximum speed is 260 pieces/minute.

3
3

At the same time, the model also has the flexibility of spatial layout, which can maximize the utilization rate of weaving workshop and facilitate transfer and storage.
