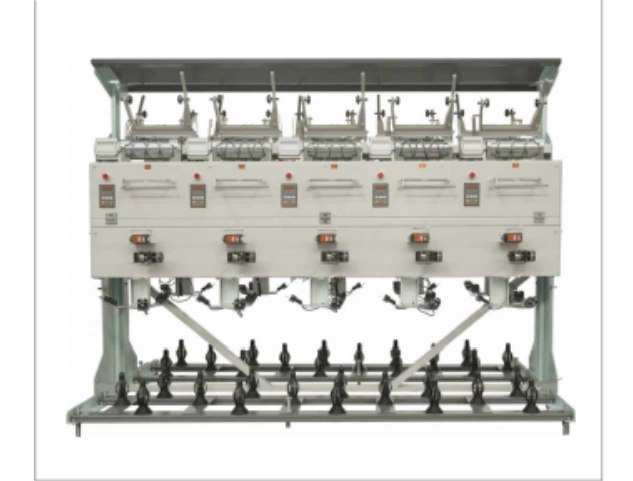

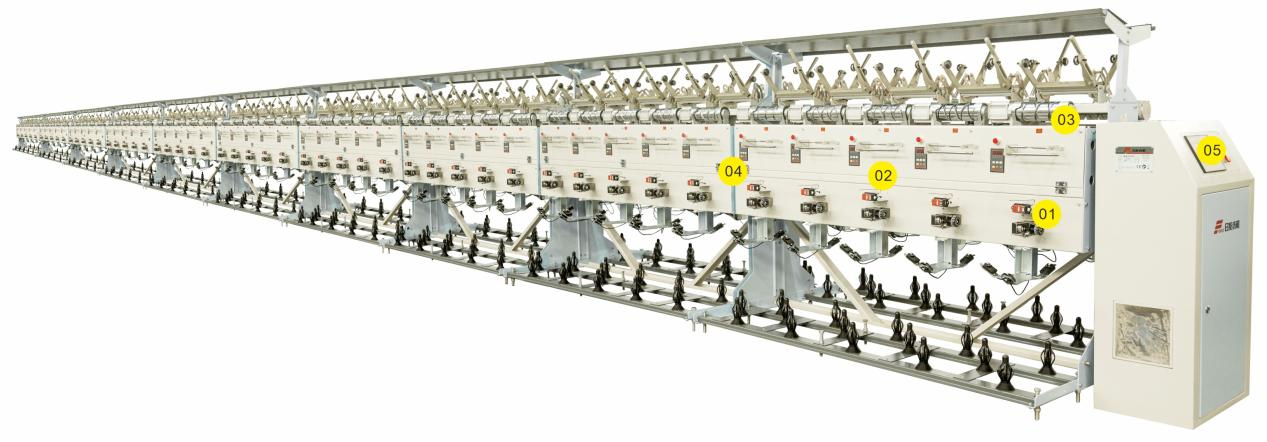

This product is a new assembly winder machine with a grooved drum that is based on the original model and optimizes the yarn guiding path. The product can be used to combine 2~3 strands of cotton, hemp, wool, and partial blending yarns into a doubling bobbin, which is suitable for processing subsequent processes such as a two-for-one twister machine.
| Items | Parameters |
| Type Of Machine | Double-side, single layer |
| Spindle Gauge | 415mm |
| Yarn Type | Cotton yarn, wool yarn, polyester yarn, blending yarn, etc |
| No. of Spindles | Standard 100 spindles, 10 spindle/ section |
| Yarn Strands No. Of Merging | 2-3Ply |
| Anti-stack Mode | Electric intermittent type and grooved drum anti-fold |
| Driving Mode | Single spindle motor direct driving |
| Winding Mode | Random winding |
| Guiding Yarn Mode | Groove drum |
| Yarn Guide Travel Route | 152mm（6”）; 212mm（8”） |
| Max Yarn Speed | 800m/min |
| Max Package Diameter | Ø200mm |
| Tension Control | Spring compression type |
| Yarn Break Monitoring Method | Photoelectric break yarn detection, automatic stop and cut-off |
| Motor Power | 0.09kW/spindle (6” ); 0.12kW/spindle (8”) |

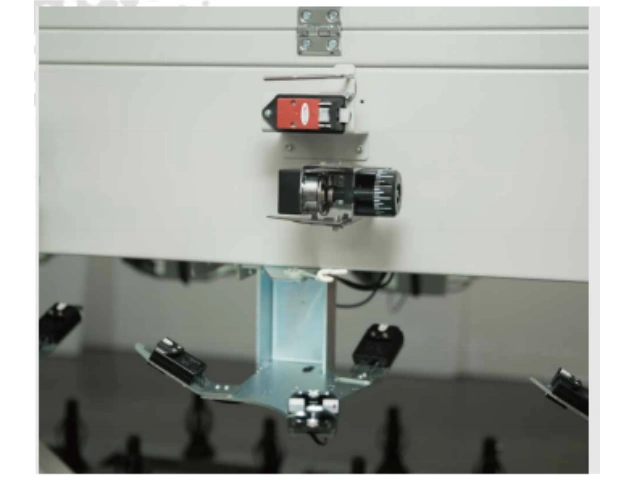

Whole new bobbin creel structure to meet the stability requirement of yarn operation.

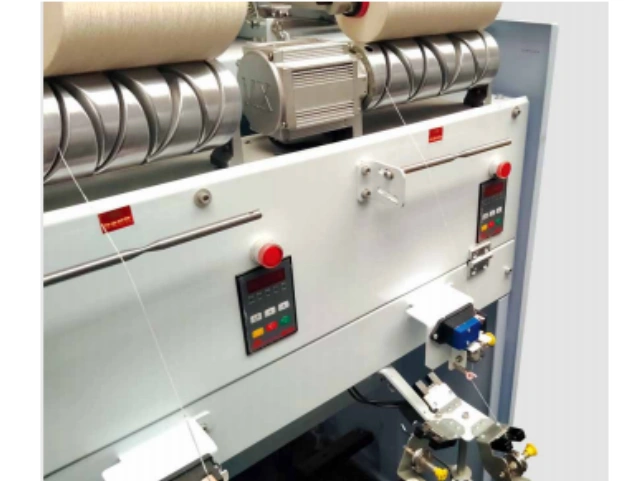

Excellent yarn passing passage structure to ensure high-speed running of yarn.

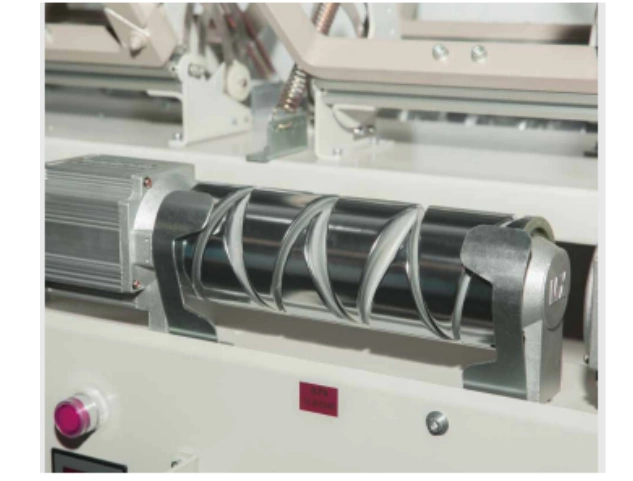

Optimized grooved drum structure can greatly reduce occurrence of yarn splitting.

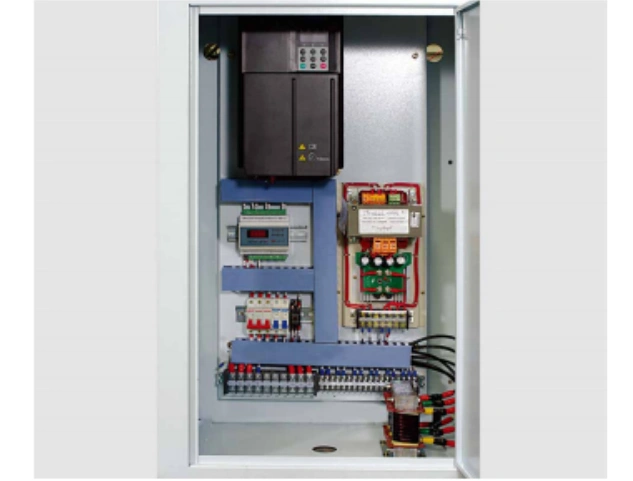

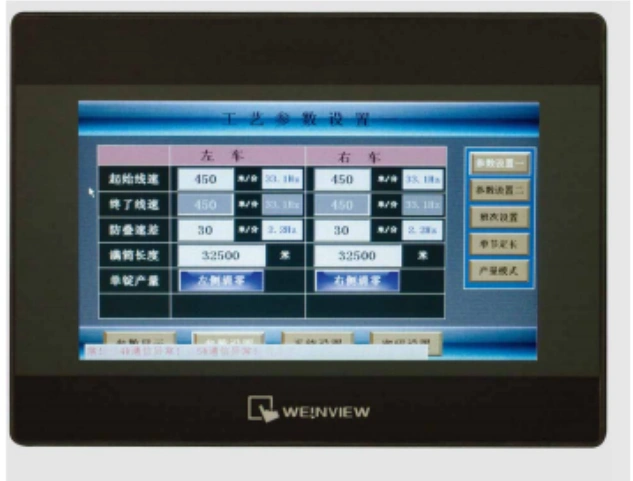

The winding machine in textile industry applies a whole new control system to meet the process requirements of different customers.
