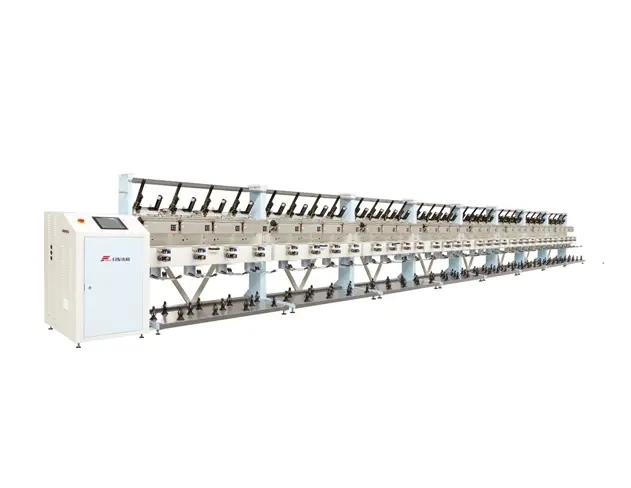

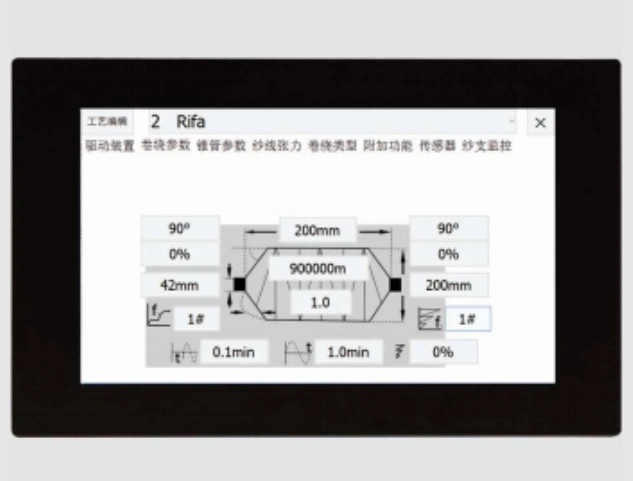

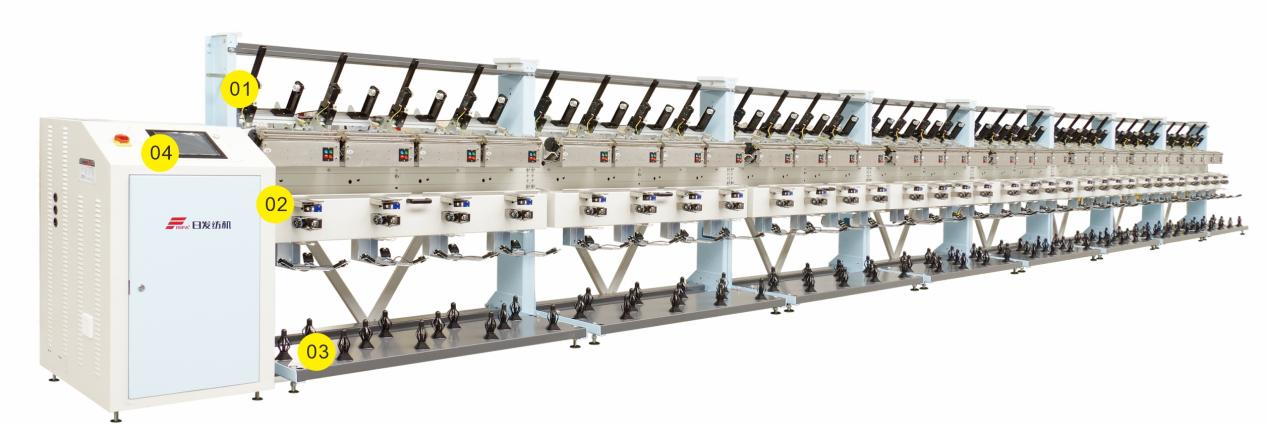

Based on absorbing advanced technologies at domestic and abroad, our Company has designed and developed a new type of precision assembly winder machine with a leading technical level in the industry. By precise calculation and arrangement of the yarn track, the winding density can be increased by at least 30% without increasing tension. It adopts a single spindle control mode, with all functions managed and operated on the control terminal, which can realize real-time monitoring.
| Items | Parameters |
| Suitable Yarn | Cotton and wool short fiber yarns or cotton, wool short fiber yarns and spandex |
| Yarn Count Range | 10-3000 Dtex ne3-80 (nm5-135) |
| Feeding Yarn Diameter | Maximum: 230 mm |
| Full Package Weight | Maximum: 5kg |
| Spindle Arrangement | Single-sided or double-sided arrangement |
| Transmission Device | Single spindle |
| No. of Spindles / Section | Standard 4 spindles |
| No. of Spindles | Max. 60 spindles for single-sided, max. 120 spindles for double-sided |
| Spindle Gauge | Standard 450mm |
| Section Length | 1944mm |
| Winding Mode | Digital winding, precise winding |
| Package Form | Program freely |
| Bobbin Type | Minimum diameter of empty bobbin; Inner diameter of 37.5mm, outer diameter of 43mm |
| Length of Empty Bobbin | 170mm or 230mm |
| Winding Diameter | Maximum: 280mm |
| Traverse Length | 50*210mm |
| Mechanical Speed | Maximum 1200m/min (Process speed depends on the yarn and technical parameters) |
| Power Frequency | 50/60Hz |
| Installed Power Per Spindle | 0.2kW/spindle |
| Actual Power Consumption Per Spindle | 0.05-0.10 kW/spindle (Vary depending on different processes) |
| Overhead Blower Power (Optional) | 1.1kW |
| Environmental Conditions | Air temperature 20-30℃relative humidity (without condensate water) 50%-75% |
| Optional | yarn cleaner; tension sensor; spandex device; single yarn tension auxiliary device |

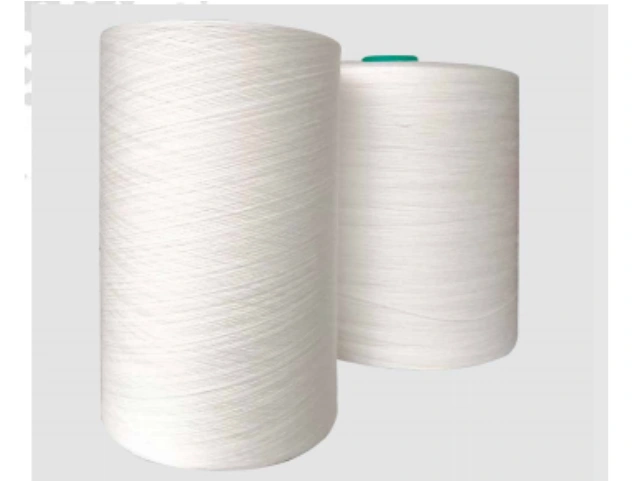

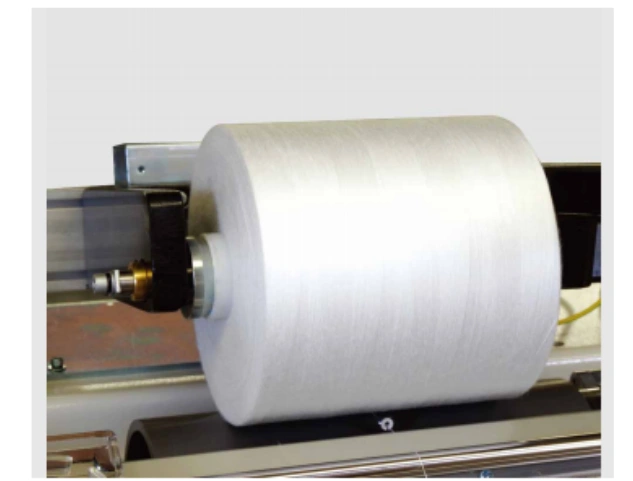

High-density package requirement, with the maximum density up to 0.65g/cm3. In combination with the precision doubling, a more energy conservation spindle can be selected in the process of the next process of twister. Keep yarn capacity not change, the twister machiens can use smaller size spindles pot, which can greatly reduce energy consumption.
Various forming methods and customized setting of winding angle provide a prerequisite for high count yarns and small tension package, achieving better unwinding state when processing high quality yarn in next stage of two-for-one twister.
