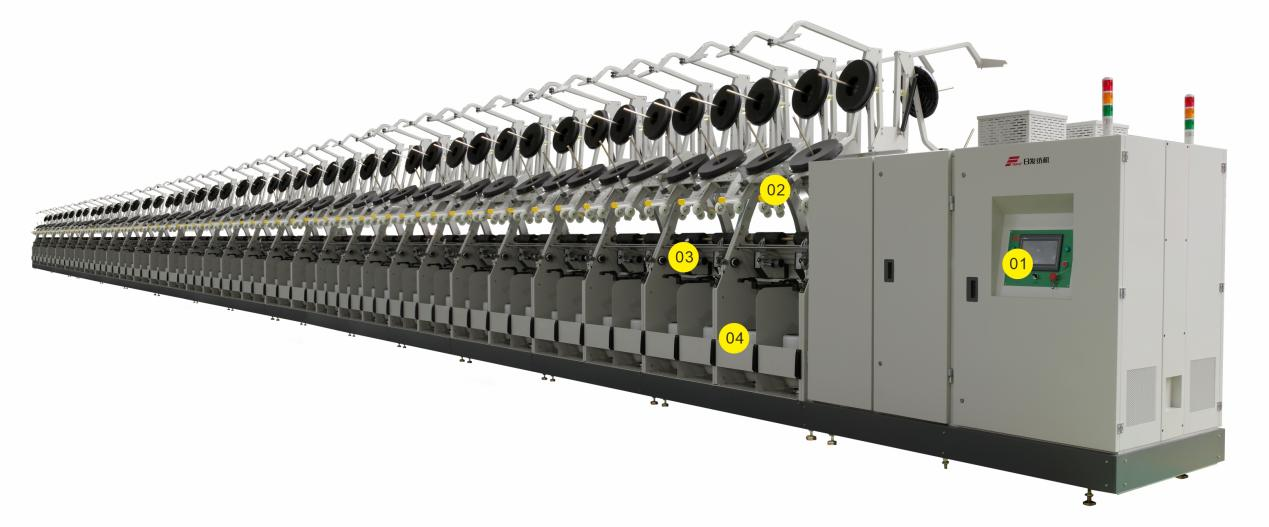

RFCC11 Direct Twisting Machine for Carpet Yarn

CC11 is a new type of direct twisting machine developed by our company for the yarn in the carpet field. The direct twisting machine for carpet yarn is a one-time merging method with a single processing, which reduces the number of steps compared with the traditional twisting method. So the yarn capacity is also more compared to the two-for-one twister machine, it is with less power consumption.This increases production efficiency, reduces labor, reduces energy consumption and operates easy.


Specification

Specification of RFCC11 Direct Twisting Machine for Carpet Yarn

NameTechnical parameters
Control SystemPLC control
Applicative Fineness940~2520dtex (polyamide, polyester)
SpindleType: Ø230 / Ø250 Single Motor with Independent Drive, Standard Mode: Ø230mm
Number of SpindlesStandard Type: 8 spindle/section, max 168 spindles
Spindle Gauge450mm
Spindle Speed3000~7000 r/min
Twisting Range78~921 T/m
Twisting DirectionS or Z twist
Tyarn TensionerMagneric-Iag Tensioner

Size of Yarn Supply Bobbin (Diameter×Length)

(Ø54~Ø110)×(200~300)
Size Of Winding Bobbin(Ø70~Ø90)×290±2
Winding Traverse254mm
Winding Diameter350mm at maximum
Yarn Supply Diameter

230mm at maximum

Installation Power173.2kW at maximum
Starting ModeSoft Starting
Winding Angle15°~ 25° Direct Set (Regulation without Level)
Leading Speed10~70m/min
Threading Pressure4.0±0.5bar


Features

Features of RFCC11 Direct Twisting Machine for Carpet Yarn

1
1

New spindle structure technology to achieve small balloon twisting, thus achieving effective energy saving.


2
2

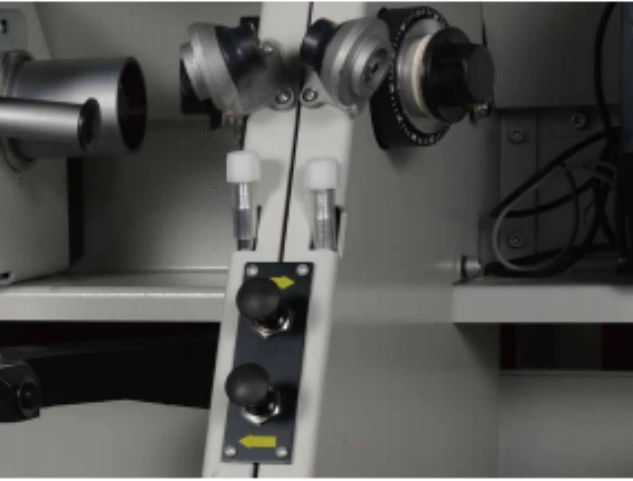

A constant outer yarn tension control mechanism is used to achieve small balloon twisting for effective energy saving.


3
3

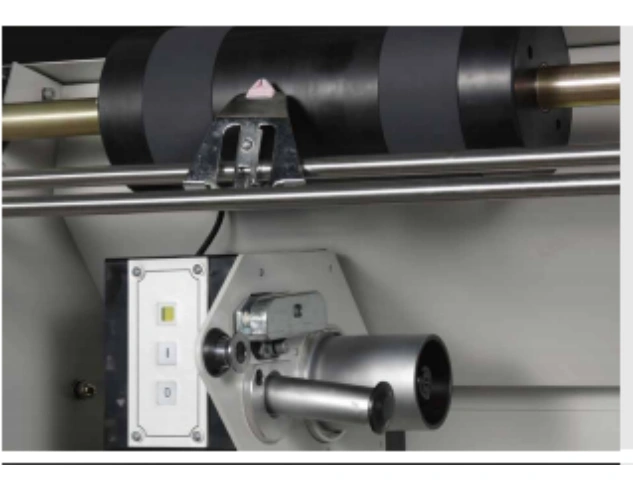

The single spindle is equipped with a tension detecting device to ensure the tension uniformity of the yarn during operation.


4
4

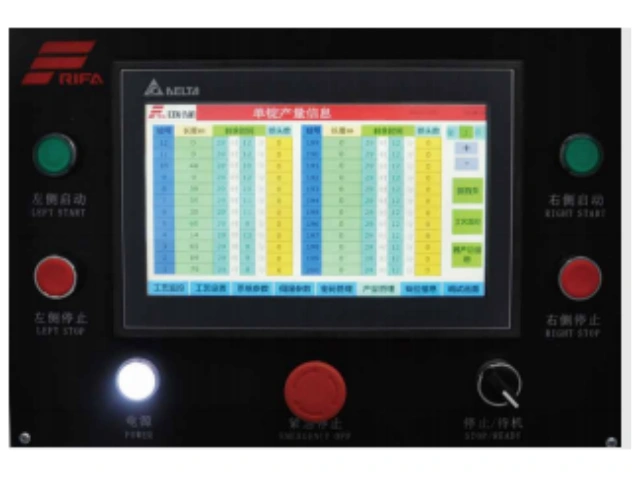

Simplified control system for real-time monitoring of the operating status of a single spindle.
