RFJW05 Water Jet Looms

The RFJW05 series water jet looms are mid-range weaving machines that incorporate the advanced technology of shuttleless looms, such as Rifa air jet looms. Developed with a design concept focused on energy saving, low consumption, high speed, and high efficiency, these looms are suitable for a wide range of fabric varieties.

Video of RFJW05 Water Jet Textile Machine

Specification

Specification of RFJW05 Water Jet Looms

Item

Specifications

Options

Width

Reed Width

190, 210, 230, 290, 320, 340, 360cm


Working Width

Reed width minus 0-70cm


Weft Color

2 colors at will


Power

Start Mode

Super motor / Direct motor


Motor Capacity

2.7kW, 3.0kW, 3.7kW, 4.5kW


Working

Brake through electromagnetism clutch


Buttons (prepare, start, stop, forwarder inching,  reverse inching, reverse one circle)


Automatic pick finding


Beating

Crank multi-sley-bar beating mechanism/Lineal beating mechanism


Insertion

Pump

Plunger pump


Nozzle

Annular nozzle manostat (ceramics jet needle)


Accumulator

Vibration electric drum accumulator (2 color)

WBS Electric weft

Electric weft

Drawing device

Shedding Device

Crank: 4 heald frames, 6 heald frames


Cam: up-mounted cam, max 10 heald frames


Dobby:

Up-mounted negative dobby

Up-mounted positive dobby

max 16 heald frames


Jacquard


Let - off


ELO


Max Tension

2500N, 5000N


Back-roller

Standard


Flange Diameter

800mm

1000mm

Take - up


ETU


Cloth Diameter

520mm


Cloth Route

Type S1, Type S2


Cone Stand

4 cone stand, 2 color


Selvage

Planet gear


Handling of Yarn End

Spindle false twisting


Weft Cutter

Mechanical


Temple

Up-mounted double temple shaft with double rings


Dehydration

Tiny crevice pipe suction (high-pressure blowing)

Machine 370W


Stop motion

Weft Stop

OPF photoelectric sensor


Display of Stop Reasons

Screen panel


Mult-function 4-light indicating


Automatic

Main Control

Auto control, fault removal, itself a diagnosis


Showing working info and maintenance data


Net

Centralizing net connection, loom supervisory system



Features

Features of RFJW05 Water Jet Looms

1
1

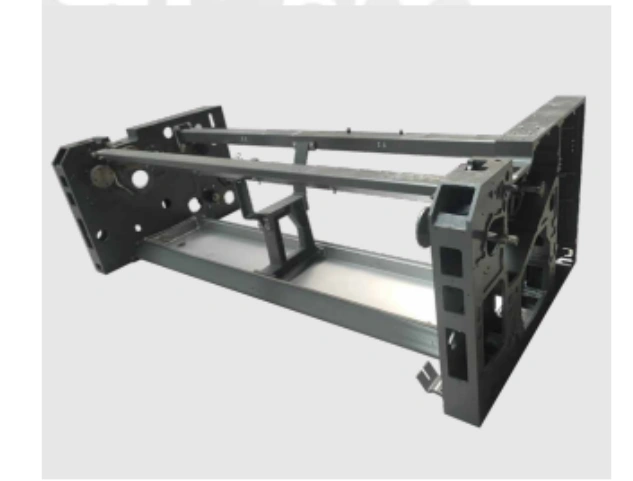

Good frame structure.


2
2

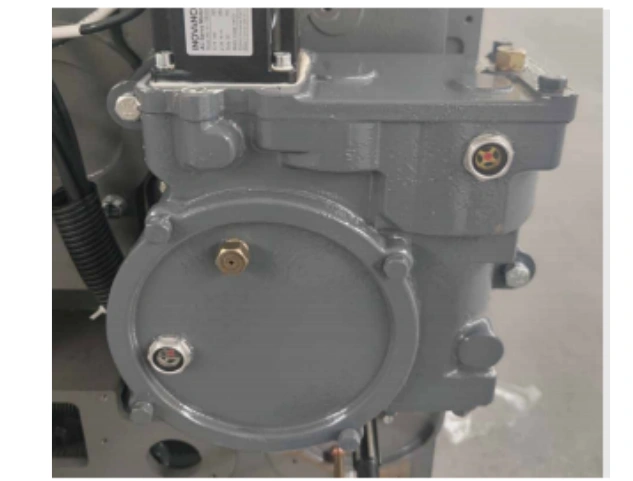

Rich configuration.


3
3

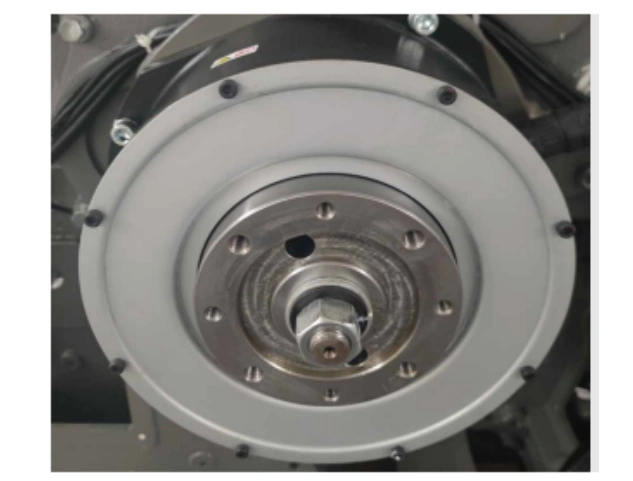

Convenient operability.


4
4

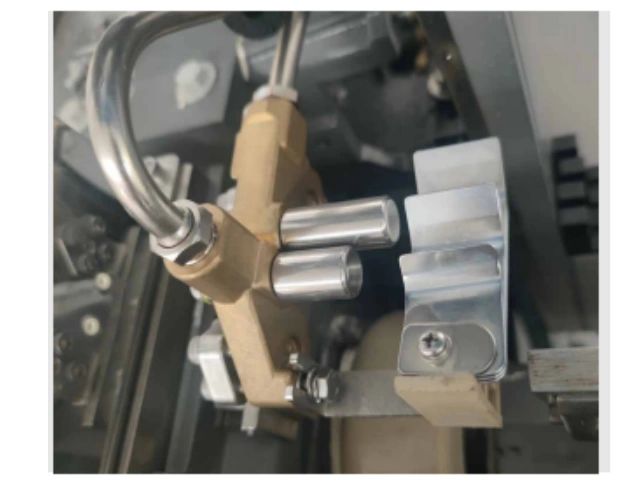

Active promotion of green weaving.


5
5

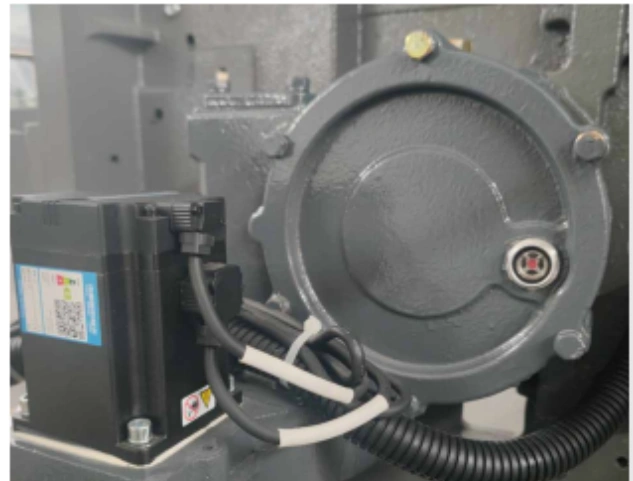

Wide weaving adaptability.


6
6

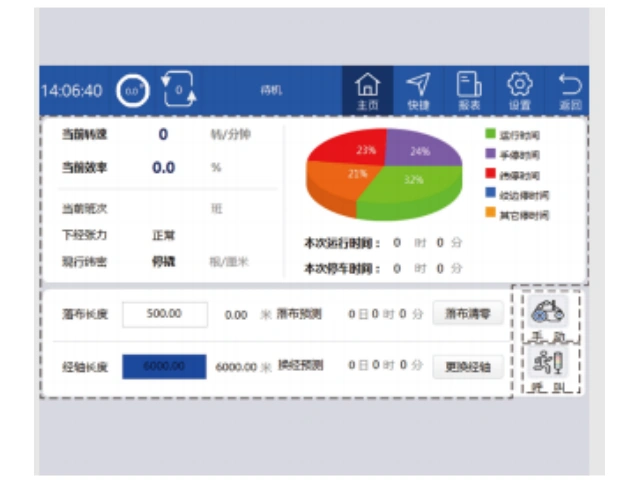

Intelligent control system.
