RFJW10 Water Jet Looms

The RFJW series Water Jet looms are a testament to our commitment to innovation and technological advancement. Building on the technology of the RFJA air jet looms, these models are designed with the concept of high speed, low consumption, and wide weaving range in mind.

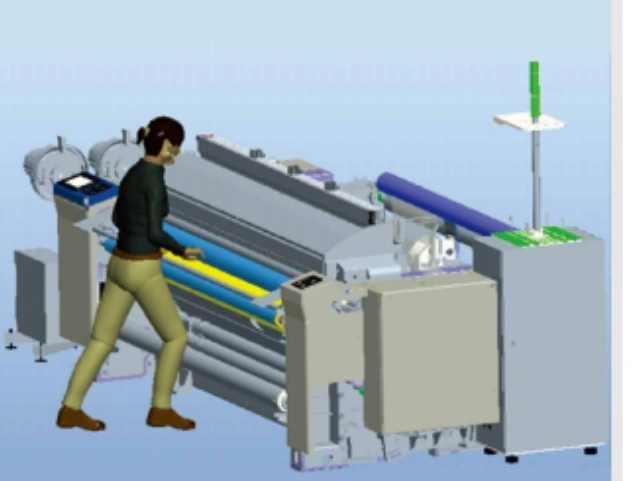

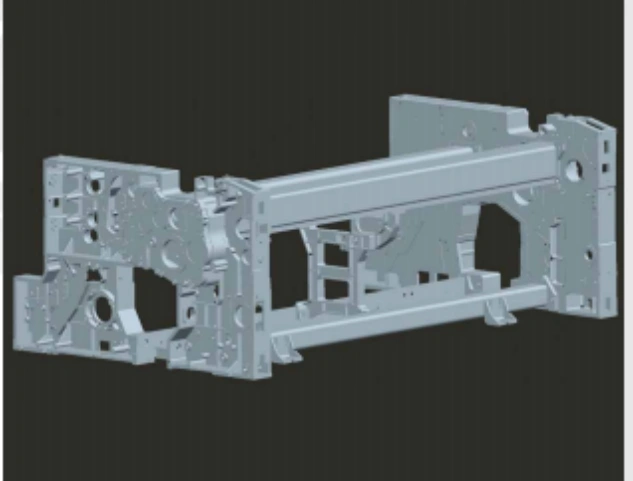

These looms are designed using cutting-edge three-dimensional designing software and computer analysis. We have also utilized virtual prototype technology in the design of the weft insertion, shedding, and beating-up mechanisms. This ensures optimal performance, efficiency, and versatility.


Specification

Specification of RFJW10 Water Jet Looms

Item

Specifications

Options

Width

Reed Width

150, 170, 190 210, 230, 280, 300, 320, 340, 360cm


Working Width

Reed width minus 0-70cm


Weft Color

2 colors at will


Power

Start By

Super motor


Motor Capacity

2.7kW, 3.0kW, 3.7kW, 4.5kW


Working

Brake through electromagnetism clutch


Buttons (prepare, start, stop, forwarder inching,  reverse inching, reverse one circle)


Automatic pick finding


Beating

Crank with multi-sley, bath oil


Insertion

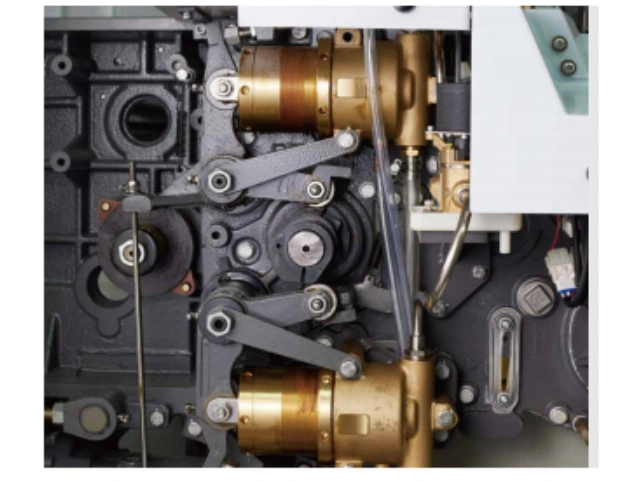

Pump

Plunger pump

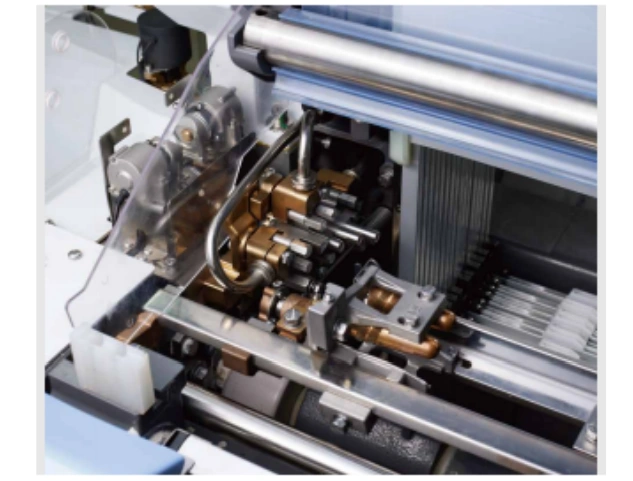

Nozzle

Annular nozzle manostat (ceramics jet needle)


Accumulator

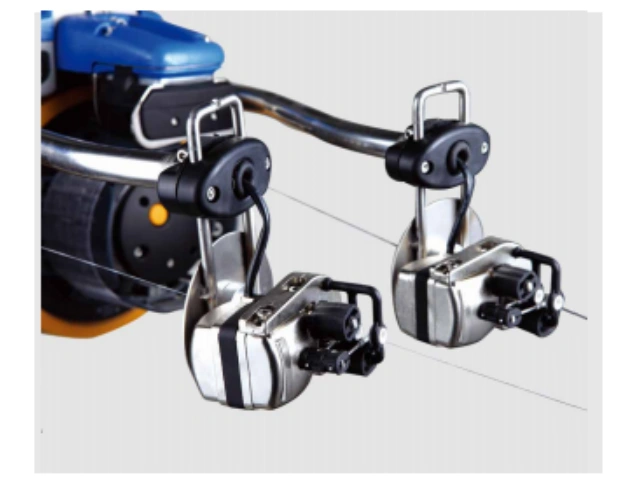

Vibration electric drum accumulator (2 color)

WBS

Electric weft

Drawing device

Shedding Device

Crank: 4 heald frames, 6 heald frames


Cam: up-mounted cam, max 10 heald frames


Dobby:

Up-mounted negative dobby

Up-mounted positive dobby

max 16 heald frames


Jacquard

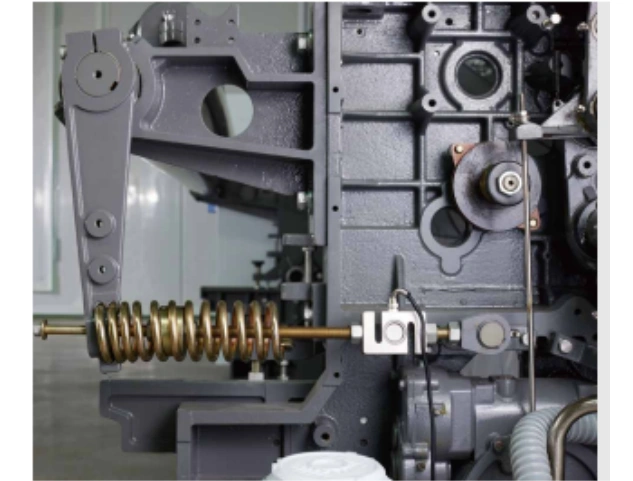

Let - off


ELO, MLO


Max Tension

2500N, 5000N


Back-roller

Standard


Flange Dia

800mm

914mm, 1000mm

Take - up


ETU, MTU


Cloth Dia

520mm


Cloth Route

Type S1, Type S2


Cone Stand

4 cone stand, 2 color


Selvage

Planet gear


Handling of Yarn End

Spindle false twisting


Weft Cutter

Mechanical


Temple

Up-mounted double temple shaft with double rings


Dehydration

Tiny crevice pipe suction (high-pressure blowing

Machine 370W


Stop motion

Weft Stop

OPF photoelectric sensor


Display of Stop Reasons

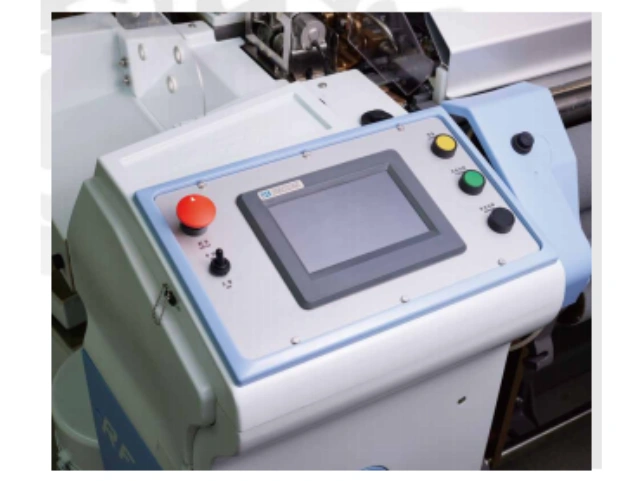

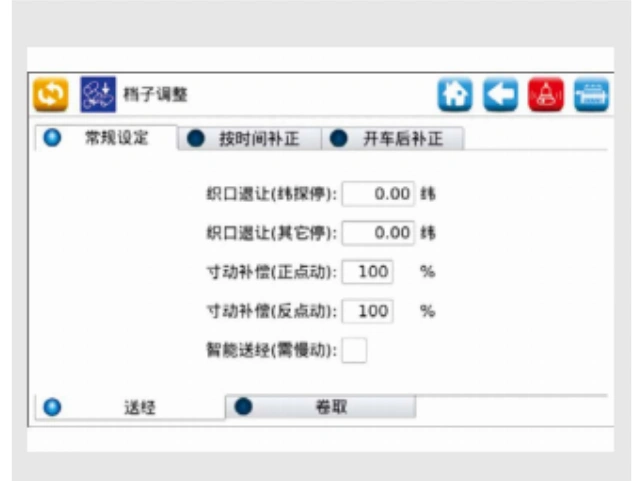

Screen panel


Mult-function 4-light indicating


Automatic

Main Control

Auto control, fault removal, itself a diagnosis


Showing working info and maintenance data


Net

Centralizing net connection, loom supervisory system

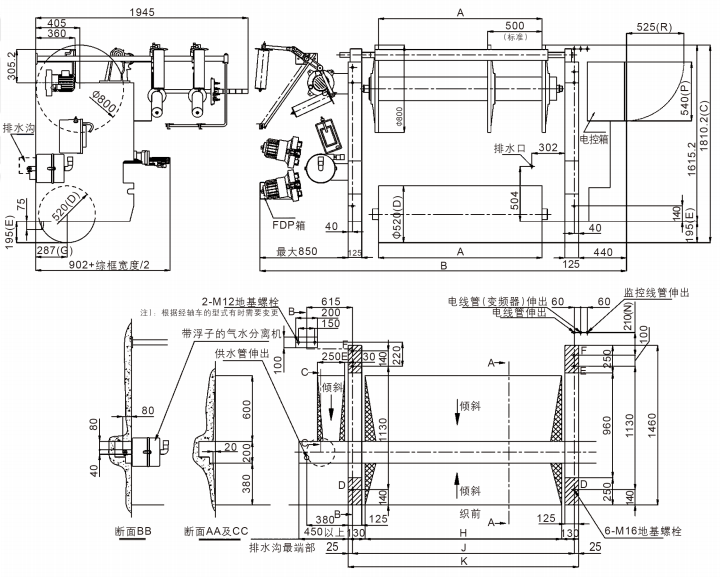

Dimensions of RFJW10 Water Jet Looms

RFJW10 Plain shedding (Flange dia 800mm)

RFJW10 Water Jet Looms


RFJW10 Cam, dobby shedding (Flange dia 800mm)

RFJW10 Water Jet Looms


Width

A

B

H

J

K

150cm

1500

3400

1850

2060

2110

170cm

1700

3600

2050

2260

2310

190cm

1900

3800

2250

2460

2510

210cm

2100

4000

2450

2660

2710

230cm

2300

4200

2650

2860

2910

280cm

2800

4700

3150

3360

3410

300cm

3000

4900

3350

3560

3610

320cm

3200

5100

3550

3760

3810

340cm

3400

5300

3750

3960

4010

360cm

3600

5500

3950

4160

4210



Features

Features of RFJW10 Water Jet Looms

1
1

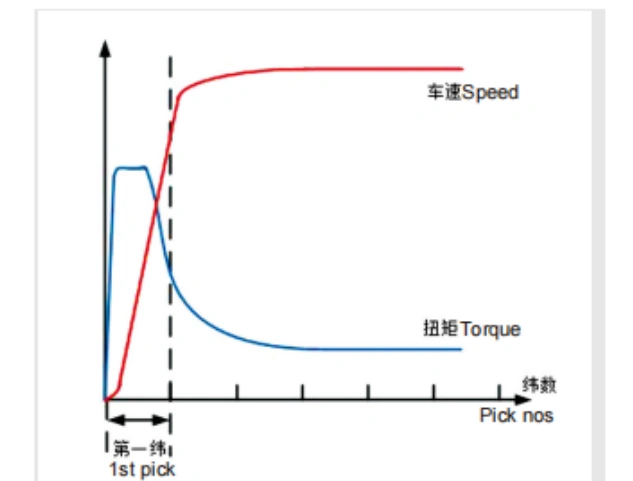

High speed performance.


2
2

Wide wovenable range.


3
3

Easy operation.


4
4

Perfect environmental protection.


5
5

Reliable quality warranty.


6
6

The first weaving navigation system in China.
