RFRL31 High Speed Rapier Loom

Shandong Rifa Textile Machinery Co., Ltd. always devotes herself to value-added study for textile technology, helping customers to get better production with economic cost. It is the basic of RFRL31 power-saving high speed rapier loom's successful development.

Specification

Specification of RFRL31 High Speed Rapier Loom


Item

Specification

Reed width

Nominal: 170, 190, 200, 210, 220, 230, 240, 260, 290, 320, 340, 360(370), 380(390, 400) cm

Working reed width: reduce 0-80cm from the nominal width

Yarn range

Cotton and man-made fiber yarn: 500tex(1.2Ne)~5tex( 120Ne)

Slub & worsted: 680tex(1.5Nm)~10tex(100Nm)

Filament: 10dtex (9Td)~1650dtex (1500Td)

Fabric weight: 20~850g/㎡

Weaving speed

Designed speed: 700rpm

Working speed: 450~650rpm

(depend on the width and the fabric type)

Insertion rate: 1350m/min

(depend on the width and the fabric type)

Weft

4-8 color, electronic selector with linear motor or step  motor

Accumulator: FPD electronic accumulator

Weft cutter: mechanical

Power

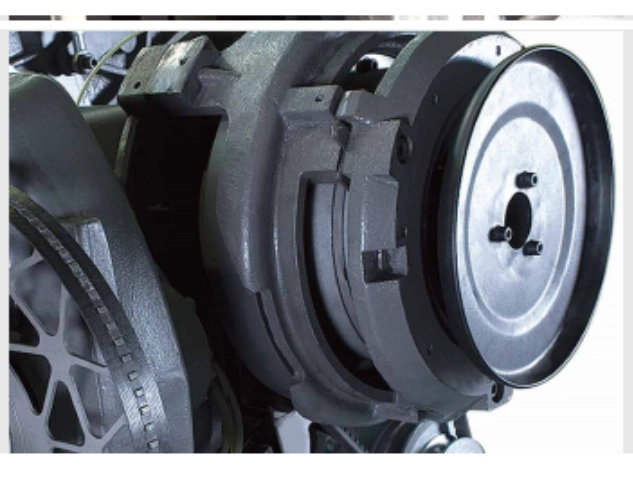

Driving controlling: super direct motor or main motor controls start or stop through belt and electromagnetism clutch

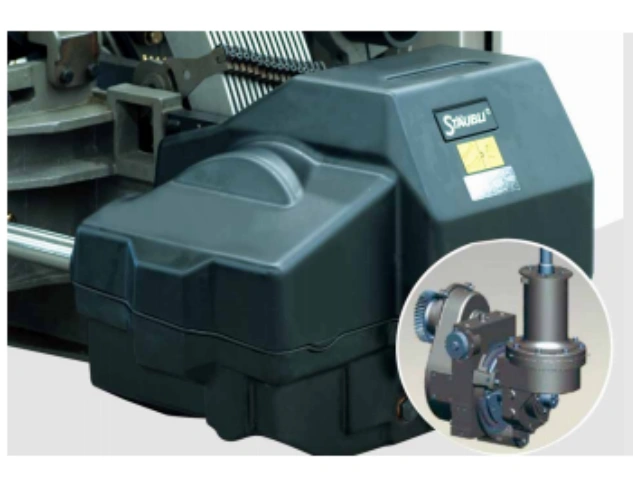

Shedding

High-speed electronic dobby, 20 shafts max, or positive cam motion (max 8 shafts)

Electronic Jacquard

Beating

Conjugated cams of two sides drive sley

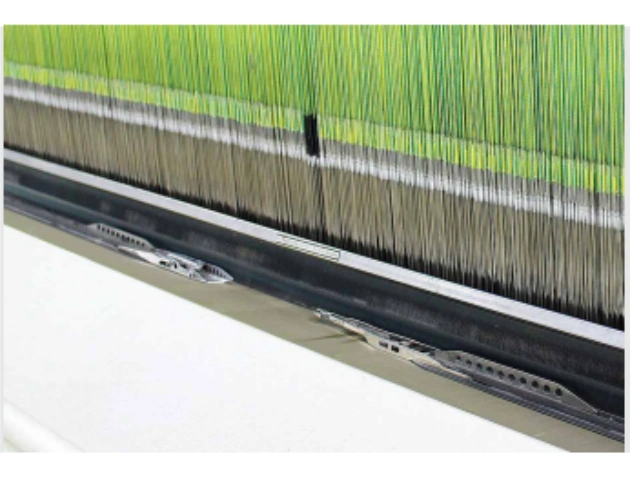

Insertion

Spatial crank system, free flight weft insertion

Let-off

Continuous alternative current servo electronic let-off

Single beam, twin beam

Flange dia. : Ф1000mm, Ф800mm

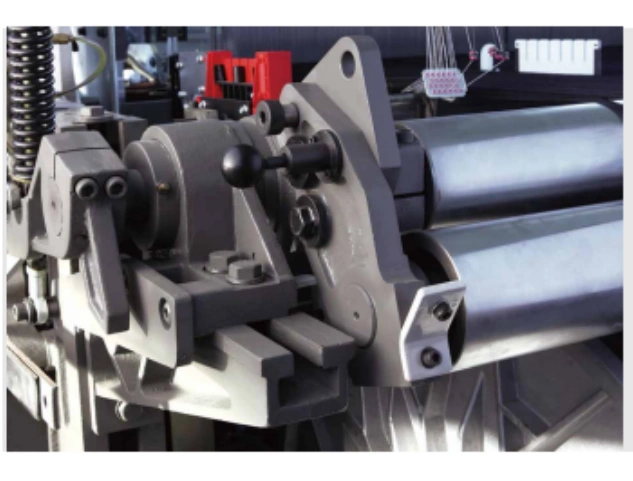

Take-up

Continuous alternative current servo electronic take-up

Cloth roller dia. Ф600mm max.batcher Ф1200mm

Weft density range of mechanism: 2-200 picks/cm

(The specific weft density depends on the yarn specifications, fabric weave, loom speed, and weaving  environment)

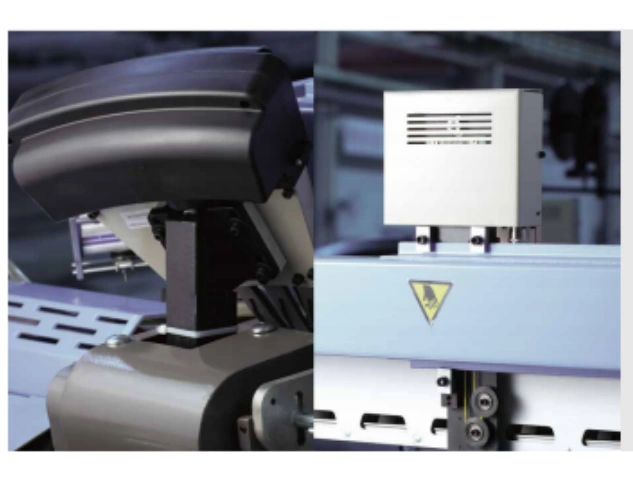

Selvage

Leno selvage: Electronic selvage with Linear motor or step motor

Selvage cutter: mechanical, options electronic

Temple: LH & RH individual options full-width

Lubrication

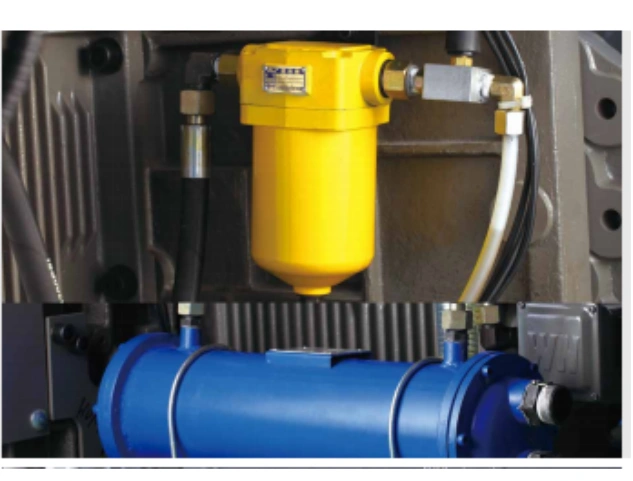

Centralized pressure bath&oil

Stop motion

Warp yarn: 6/8 line electronic contact stop motion

Weft yarn: electronic high-sensitive piezoelectricity  inspection

Others: leno selvage yarn and waste selvage yarn break  then auto stop

Stop display: the panel shows the stop reason, functional  4-color stop lights showing

Automatic

auto stop/auto pick-finding/cloth-fell compensation/auto

adjust warp

tension/auto inspection/replacement/fault showing

Electric controlling

Controlling: functional CUP controlling system, can control, scout, auto diagnose, information showing

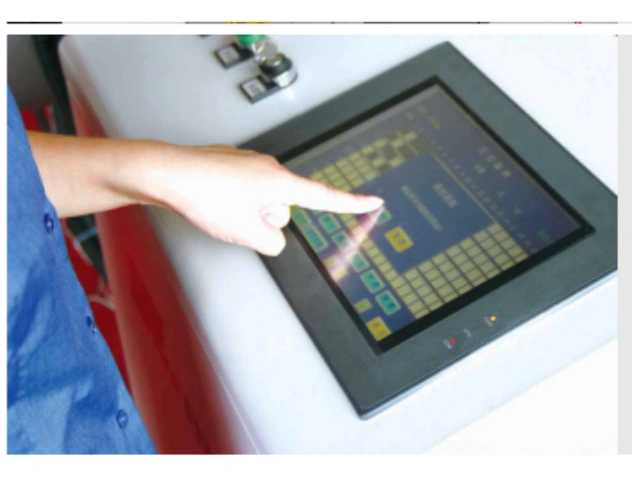

Display: big LCD screen showing intercommunication, button operation, instant adjustment/parameter set, and making program.



Dimensions of RFRL31 High Speed Rapier Loom

RFRL31 High Speed Rapier Loom


Loom specifications

LP

A

B fabric with false edges

C-axis

E

G

Weight (20 pull rods)

maximum

minimum

maximum

minimum

RFRL30

RFRL31

RFRL30

RFRL31

170

2100

1700

900

1700

910

3300~3600

4783

5155

3650

3900

190

2300

1900

1100

1900

1110

3500~3800

4983

5355

3725

3975

200

2400

2000

1200

2000

1210

3600~3900

5083

5455

3760

4010

210

2500

2100

1300

2100

1310

3700~4000

5183

5555

3795

4045

220

2600

2200

1400

2200

1410

3800~4100

5283

5655

3830

4080

230

2700

2300

1500

2300

1510

3900~4200

5383

5755

3880

4130

240

2800

2400

1600

2400

1610

4000~4300

5483

5855

3930

4180

260

3000

2600

1800

2600

1810

4200~4500

5683

6055

4040

4290

290

3400

2900

2100

2900

2110

4500~4800

6083

6455

4180

4530

320

3800

3200

2400

3200

2410

4800~5100

6483

6855

4360

4710

340

4000

3400

2600

3400

2610

5000~5300

6483

7055

4500

4850

360

4200

3600

2800

3600

2810

5200~5500

6883

7255

4730

4990

380

4500

3800

3000

3800

3010

5400~5700

7083

7455

4870

5130


Features

Features of RFRL31 High Speed Rapier Loom

1
1

High productivity, powerful beating force, very stable at high speed, advanced electric control system, easy operation are Characteristics of the rapier loom.


2
2

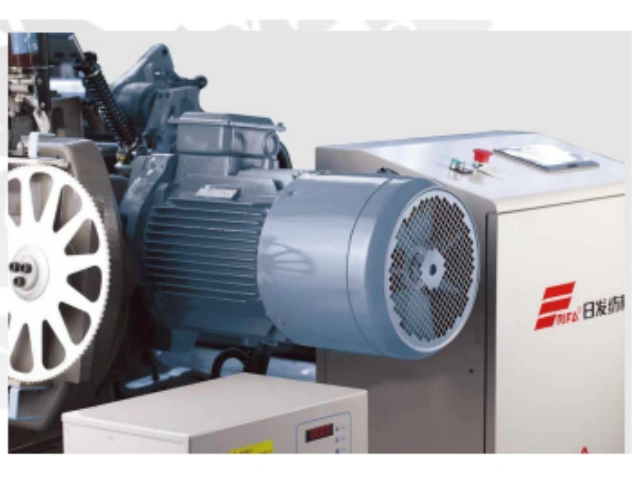

RFRL31 is developed from RFRL30, adopts super direct motor to drive loom, the speed is controlled by advanced SRD system, can ensure perfect fabric quality and save power, it can reach the international advanced level of high speed rapier looms.
