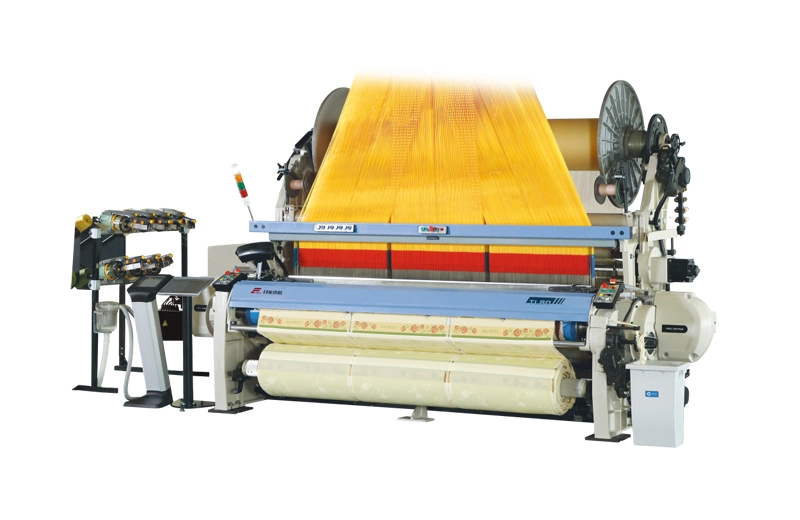

RFRL90 High Speed Rapier Loom

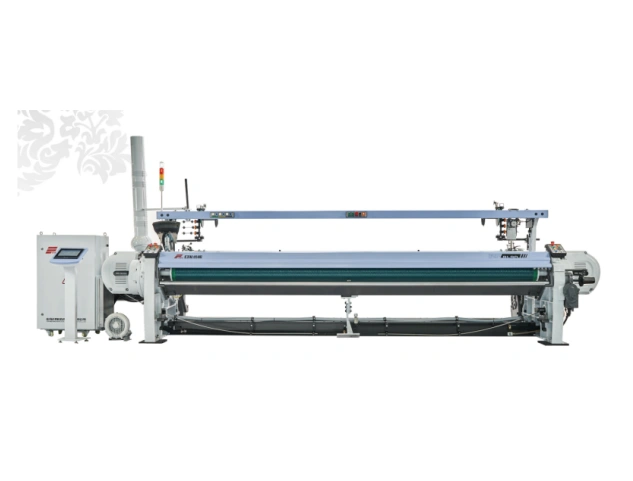

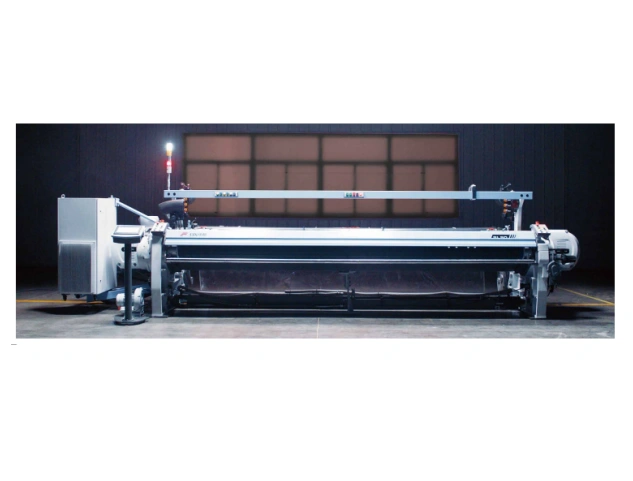

RFRL90 High Speed Rapier Loom is a newly designed loom based on our RFTL80 High End Rapier Towel Loom. It is designed to provide the market with a loom that combines quality, versatility, efficiency and availability.

The new RFRL90 high-speed rapier loom is designed and made newly based on RFTL80 high-speed  rapier terry loom, with the aim to provide the market with a weaving machine which finally combines quality  and versatility with efficiency and usability of the machine.

Video of RFRL90 Rapier Weaving Loom

Specification

Specification of RFRL90 High Speed Rapier Loom

Item

Specifications

Options

Width

Reed  Width

190cm, 210cm, 230cm, 260cm, 280cm, 300cm, 320cm, 340cm, 360cm, 380cm, 420cm


Working  Width

Reed width minus 0~60cm(190~260cm)

Reed width minus 0~80cm(280cm and above)


Shedding

Electronic Jacquard


Staubli electronic dobby (up to 20 frames)


Transfer System

Guided rapiers monorail type hooks

Free flight weft insertion


Warp Beam

Beam diameter 800mm

1000mm or 1100mm

Weft Insertion

Electronic Selector: 4, 8 or 12 colors


Weft Cutter

Mechanic filling cutter


Electronic filling cutter


Pick Density

Standard: 5-400 picks/cm


Automatic weft density variation programmable in dobby and  jacquard pattern


Selvage

Motorized auxiliary selvage and leno device


Mechanical auxiliary selvage and leno device


Mechanical tuck-in


Warp Stop Motion

Separate electronic WSM with 6 rows

8rows

Warp Let Off

Electronic-controlled let-off


Fabric Take-up and Cloth Roller

Electronic controlled take-up


Cloth roller diameter: up to Φ550mm


Inbuilt take-up

External batching motion

Connectivity

Ethernet interface


Other options

Reed LED Lamp


Dimensions of RFRL90 High Speed Rapier Loom

RFRL90 High Speed Rapier Loom


R/S

A

B

C

190

4500

2660

2470

210

4700

2860

2670

230

4900

3060

2870

260

5200

3360

3170

280

5400

3560

3370

300

5600

3760

3570

320

5800

3960

3770

340

6000

4160

3970

360

6200

4360

4170

380

6400

4560

4370

420

6800

4960

4770


Features

Features of RFRL90 High Speed Rapier Loom

1
1

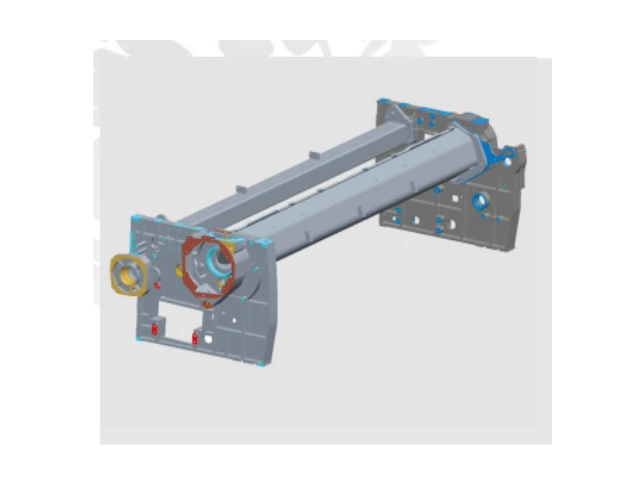

Sturdy Machine Frame: The RFRL90 high-speed rapier loom benefits from heavy-duty frames, promoting a low vibration pattern at high speed and enabling high speed and efficiency. The solid drive, positioned in main lateral frames, is engineered for extensive control moving masses to consistently process heavy patterns with minimal cost & maintenance. The best balance between consumption and performance and the minimal noise and vibrations are key elements resulting from the legacy of RFRL90.

2
2

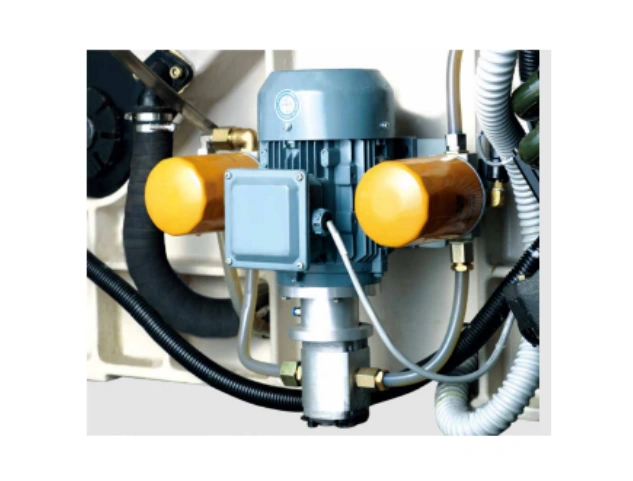

Lubrication System: RFRL90 high-speed rapier Loom adopts centralization lubrication. In this system the oil can be filtered  completely through double filters. It has a good filtering  effect on the impurities of the lubricating oil and ensures  the smooth lubrication during the weaving process.This system is connected with electric control system, reliability is assured by pressure protection.

3
3

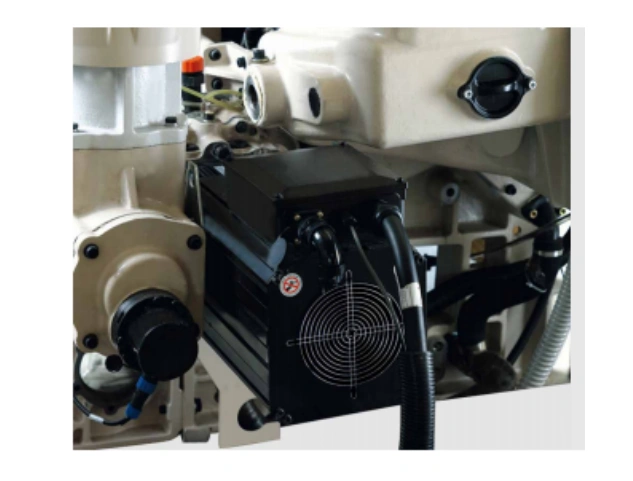

Direct Drive Motor: The main drive of the RFRL90 high-speed rapier loom is based on an efficient synchronous permanent magnet servo motor. The speed of the loom can be easily set through the touch screen, and the speed can be automatically adjusted according to the fabric structure. Simple, reliable, maintenance-free, with no cooling system required, the direct drive motor ensure top performance over time and low cost operation.

4
4

New Weft Insertion System: The weft insertion system of RFRL90 high-speed rapier loom adopts a unique space extension cam to drive the rapier wheel directly, which has the advantages of short transmission chain, compact structure, and easy maintenance. The weft insertion method can be equipped with two structures according to different fabric types:  single row suspension guide hook and free flight hook type, which can meet weaving needs for a variety of different yarns.

5
5

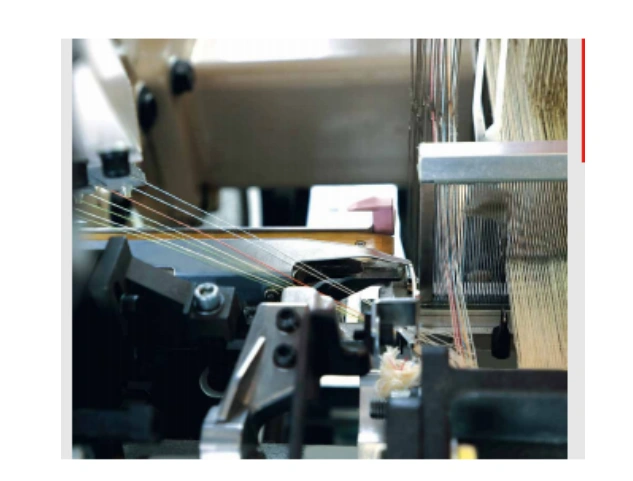

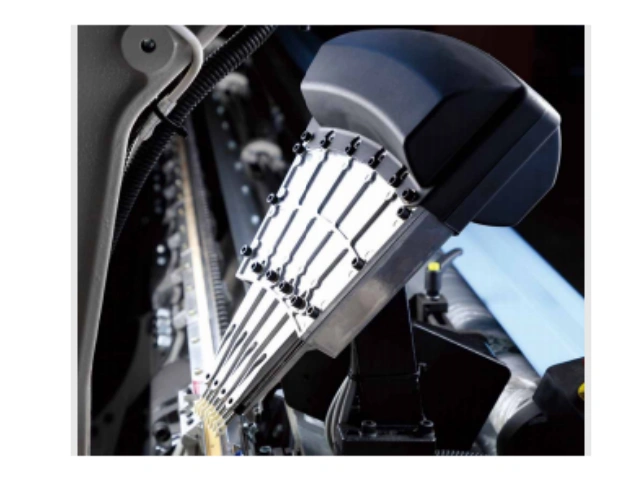

New Weft Selector: New design, each weft selection finger is controlled by independent motor, available for configurations for 4, 8 or 12  colors. Each weft selection finger is driven and controlled by the microprocessor. The action and amplitude of the weft selection finger works to eliminate interference with adjacent wefts effectively.

6
6

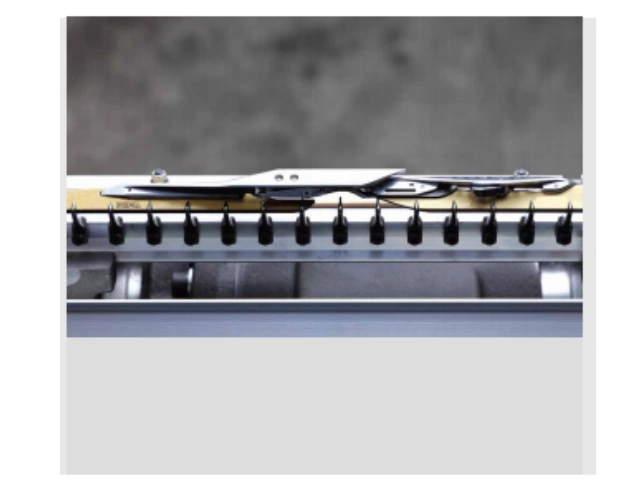

Multiple Choice of Weft Cutters: The RFRL90 offers multiple weft cutter options to fill all the weaving needs. Standard on the weaving machine are the mechanical weft cutter or the rotocut, the weft cutting is precise and optimized due to its reduced dimensions. Other option is electronic weft cutter enables to produce the most refined and elegant terry cloth, allowing to weave a mix of different types of wefts.

7
7

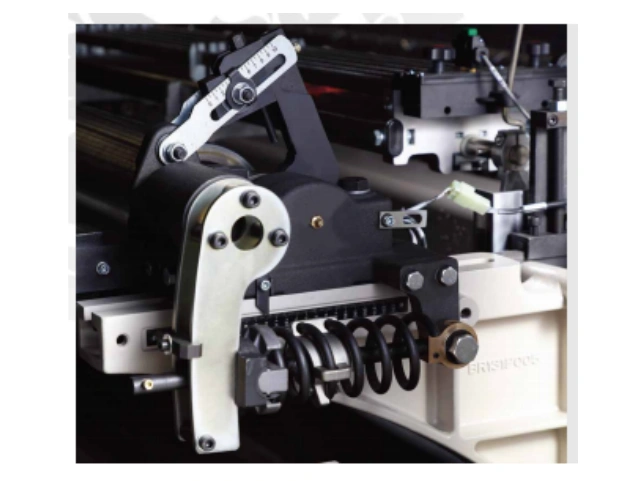

New Back-Rest Roller: The new ground back-rest roller features light weight cylinders and a load cell to control the tension, thus producing less inertial and allowing better compensation of the cylinders on the yarn. Adopts mechanical adjustable arm mechanism to work with electrical control to meet the  weaving needs of various yarns.

8
8

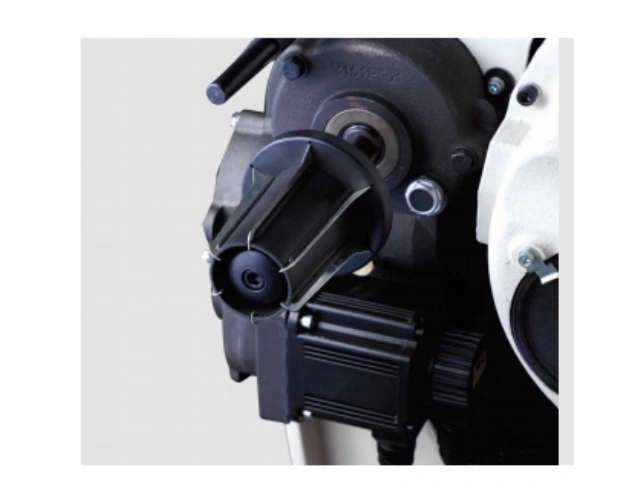

Electronic Controlled Take-Up: The machine is equipped with an enhanced electronic fabric take up, and the weft density can be set conveniently through the high-sensitivity touch screen, and the weft density can be automatically changed according to the fabric structure.
