Name | Technical parameters |
Control System | PLC control |
Applicative Fineness | 940~2520dtex (polyamide, polyester) |
Spindle | Type: Ø230/Ø250/Ø280; Standard Mode: Ø230mm |
Number of Spindles | Standard Type: 8 spindle/ section, max 168 spindles |
Spindle Gauge | 450mm、500mm, standard Mode: 450mm |
Spindle Speed | 4000~11000 r/min |
Twisting Range | 67~1375T/m |
Twisting Direction | S or Z twist |
Tyarn Tensioner | Magneric-Iag Tensioner |
Size of Yarn Supply Bobbin(Diameter×Length) | (Ø54~Ø110)×(200~300) |
Size Of Winding Bobbin | (Ø70~Ø90)×290±2 |
Winding Traverse | 254mm |
Winding Diameter | 350mm at maximum |
Yarn Supply Diameter | 230mm at maximum |
Installation Power | 179.12kW at maximum |
Starting Mode | Soft Starting |
Winding Angle | 15°~ 25° Direct Set (Regulation without Level) |
Leading Speed | 8~60m/min |
Threading Pressure | 4.0±0.5bar |
Optimal mechatronic design to realize precise yarn twist tension control.

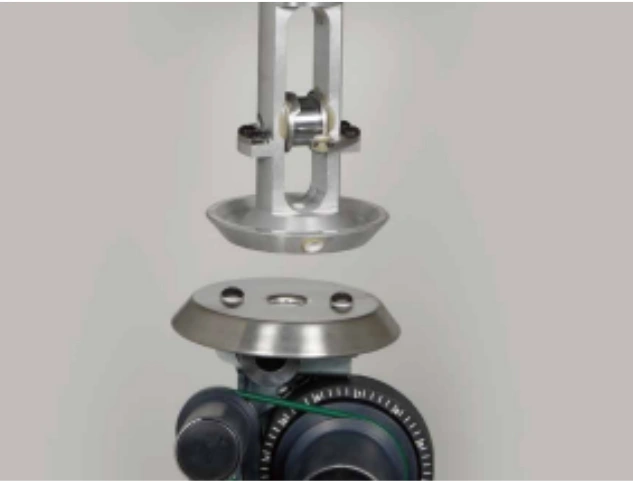

An optimized spindle mechanism is used to achieve small balloon twisting for effective energy saving. An optional precise outer yarn positive conveyor can be equipped to achieve further reduction control of the small balloon twisting for effective energy saving.

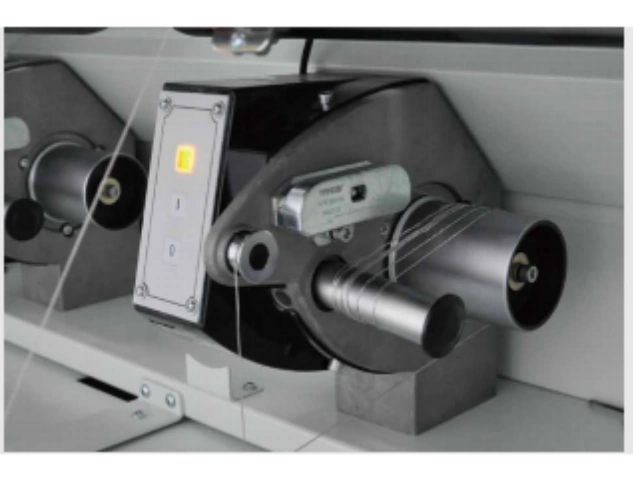

Excellent twister mechanism and inner and outer tension control can effectively guarantee the consistency of inner and outer yarn length and evenness, so as to meet the production of high quality yarn.

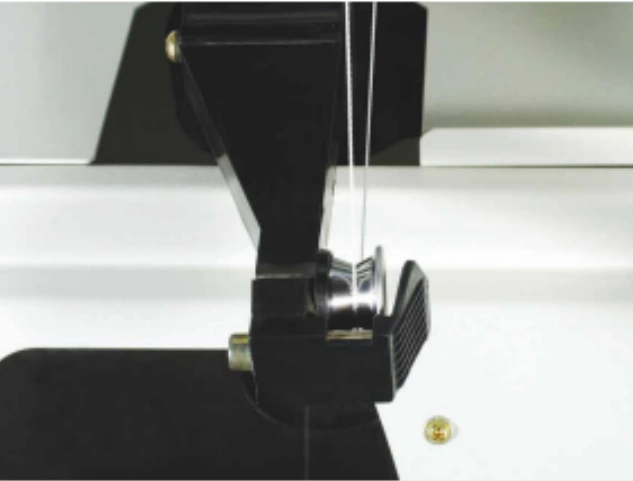

The smooth wire passage adopts special ceramics and wire roller with special surface treatment technology to reduce the strong damage of wire friction.
The equipped single spindle testing device efficiently guarantees the stability of the yarn running and improves the twisting quality.

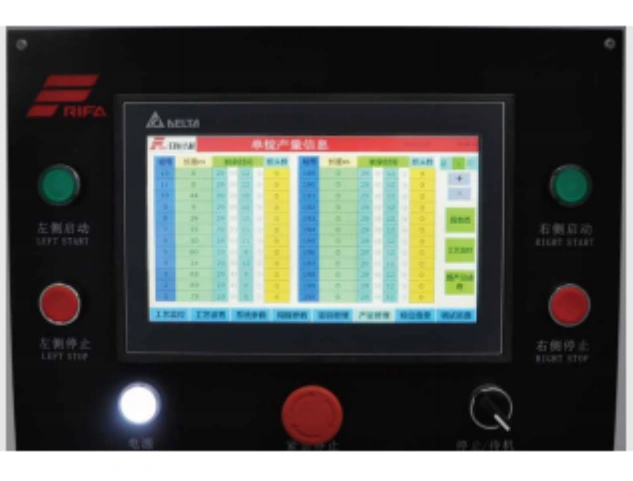

The humanized control interface and control system can monitor the operation of the single spindle and the operation status.
