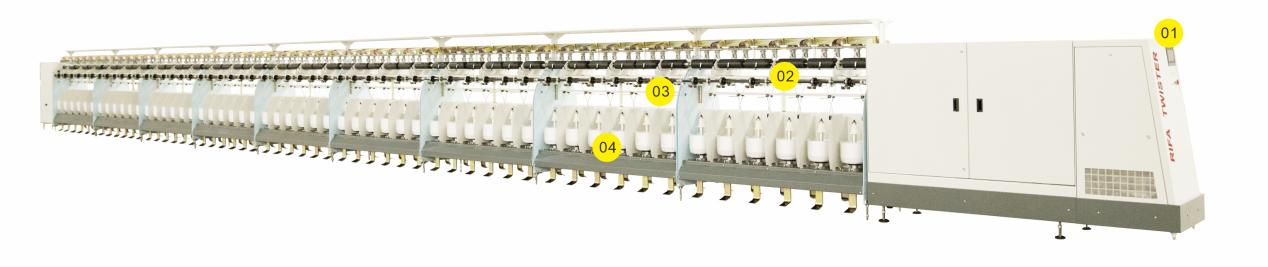

The product is a medium-package twister machine developed by our company. It is suitable for single or multi-strand twisting of various filament fibers such as POY, HDY, FDY, DTY, etc. Also suitable for the processing of all kinds of carpet yarn, lawn yarn, and various staple coarse yarn.
| Items | Parameters |
| Operation Form | Double sides single layer, manual yarn threading |
| Twist Range | 70~500T/m |
| Twisting Direction | S or Z twist |
| Spindle Gauge | 297mm，347mm |
| No. of Spindles | 14 Spindles per section, 12 Spindles per section |
| Spindle | 166 Spindle,196 Spindle,250Spindle |
| Spindle Speed Range | 3000~9000 r/min |
| Spindle Tensioner | Steel ball type, capsule type |
| Length Of Feeding Bobbin | 290mm |
| Length Of Winding Bobbin | 230mm, 290mm Straight tube |
| Traverse Length | Stepless-adjusted |
| Winding Diameter | MaxØ230 |
| Rated Power | Standard 15kW*2+2.5kW+1.5kW |
| Starting Mode | Soft start |
| Angle Of Wind | Set directly (Stepless-adjusted) |
| Reciprocating Number | Max 70 times |
| Take-Up Speed | Max 120 m/min |
| Spindle Driving Mode | Motor direct drive, variable frequency step-less speed regulation |
| Shrinking Side Mode | Collective shrinking side |

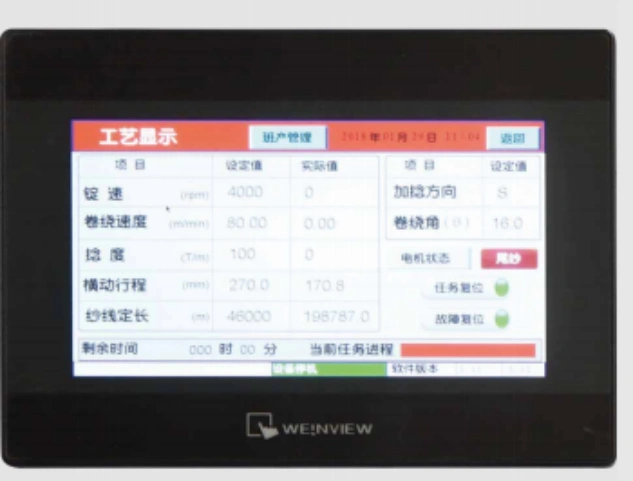

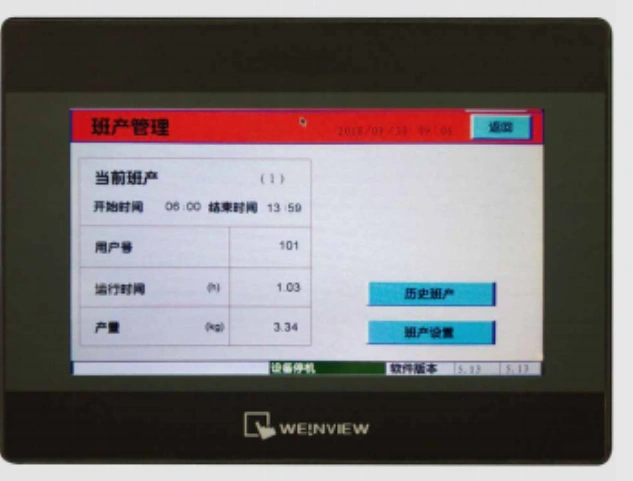

| Control Mode | Electronic integrated control |
| Items | TF20A | TF20B (Cotton Yarn) |
Suitable Yarn Count | 70D~500d chemical fiber | Multi-ply cotton yarn after ne2~10 |
| Over-Feed Roller | Double roller rollers | Cotton yarn roller |

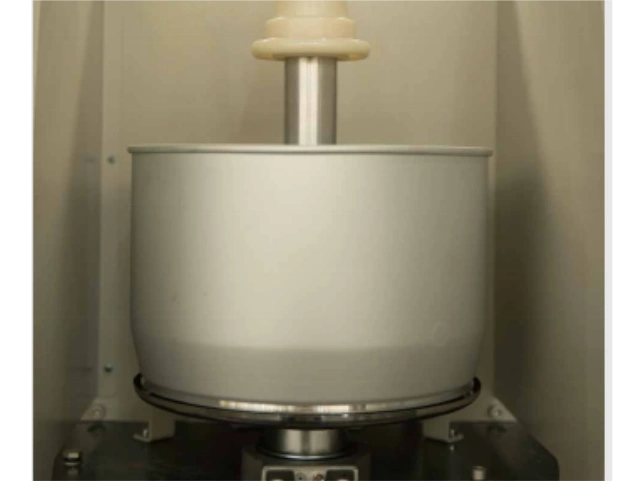

| Yarn Pot | Low yarn pot | Cotton yarn pot |
Spindle Flyer | Hula hoop | Spindle wing type |
| Spindle Type | Spinning Pot Type | Gauge（mm ) | Winding Stroke mm（≤ ) | Volume Of Packaging kg（≤ ) |
| 166 | 204 | 297 | 210 | 3 |
| 166 | 220 | 297 | 210 | 4 |
| 196 | 220 | 297 | 210 | 4 |
| 250 | 250 | 347 | 270 | 5 |
The twisting machine can achieve a maximum package size of up to 4kg.
Meet the requirements of direct processing of some yarns and reduce the process of rewinding.

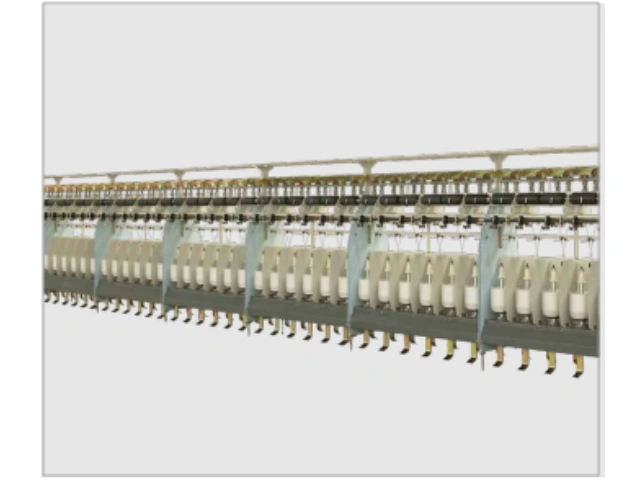

Aluminum creel structure ensures the stability of yarn forming.
The yarn process can be equipped with the function of pneumatic yarn feeding to effectively improve the efficiency of piecing.
The spindle adopts double bearing structure for better running stability and easier maintenance.
