Name | Technical parameters |
Control System | PLC control |
Applicative Fineness | 940~2520dtex (polyamide, polyester) |
Spindle | Type: Ø230/Ø250/Ø280; Standard Mode: Ø230mm |
Number of Spindles | Standard Type: 8 spindle/ section, max 120 spindles |
Spindle Gauge | 450mm、500mm |
Spindle Speed | 2000~7000 r/min |
Twisting Range | 50~800 T/m |
Twisting Direction | S or Z twist |
Tyarn Tensioner | Magneric-Iag Tensioner |
Size of Yarn Supply Bobbin(Diameter×Length) | (Ø54~Ø110)×(200~300) |
Size Of Winding Bobbin | (Ø70~Ø90)×290±2 |
Winding Traverse | 254mm |
Winding Diameter | 350mm at maximum |
Yarn Supply Diameter | 230mm at maximum |
Installation Power | 125.3kW at maximum |
Starting Mode | Soft Starting |
Winding Angle | 15°~ 25° Direct Set (Regulation without Level) |
Leading Speed | 10~70m/min |
Threading Pressure | 4.0±0.5bar |
With a new spindle structure, it can meet the different process requirements of different yarns.
Single spindle data tracking technology to stop automatically with full-bobbin and so on.
The optimal yarn passage structure can effectively reduce the processing damage of the yarn and realize the requirement of processing for high-quality yarn.

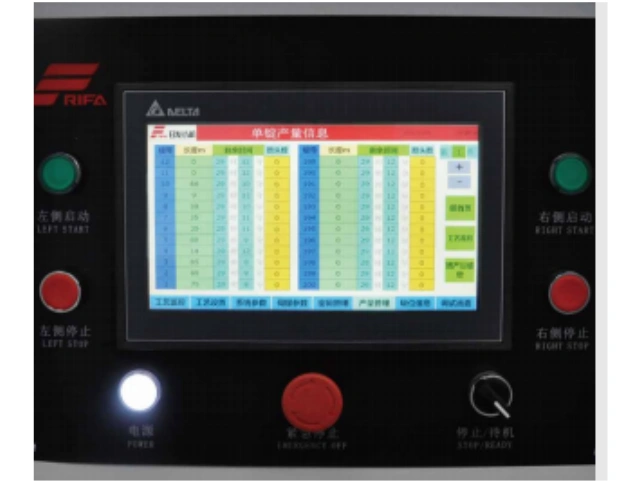

New electronic control system for easy process switching.
lt can realize the requirement of single or multi-strand post-forming, and meet the requirements of some yarns for compound twisting.
