Items | Parameters |
Applicable Yarn Range | Ne3/2~160/2 cotton yarn, a polyester-cotton blend, wool yarn, blended yarn, etc. |
No. of Sections | ≤13, Standard 10 sections |
Twist Range | 80~2500T/m (Stepless-adjusted) |
Twisting Direction | S or z twist |
Winding Travel Route | 152mm (Stepless-adjustable) |
Winding Angle | Adjustable at will |
Rated Power | 22kW+1.3kW+2.5kW |
Winding Bobbin | Bobbin length170±1mm, plate 19mm, 26mm, 28mm, 34mm, 40mm, 45.5Mm, 55mm, 58.5Mm, 67.5Mm, 68mm |
Supply Bobbin Size | Ø37.5×Ø43.5×170(230) |

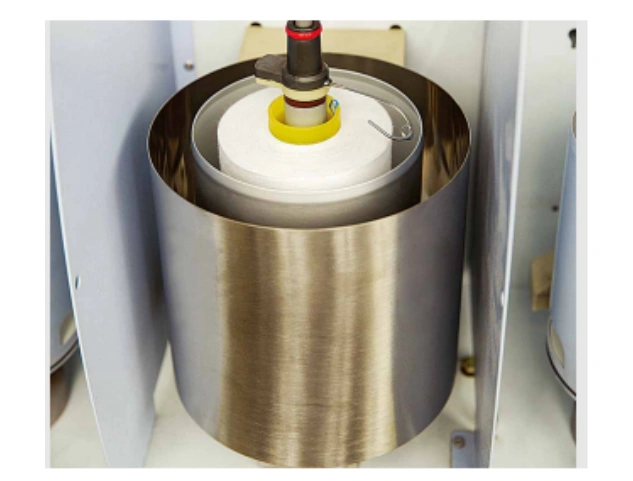

Spindle Tensioner | Capsule-type |
Start Mode | Soft start |
Operation Form | Double-side and single-layer, pneumatic yarn drawing |
Bobbin Lifting | Single spindle delayed pneumatic lifting |
Winding Diameter | MaxØ280mm |
Winding Speed | Max 80 m/min |
Spindle Driving Mode | Tangential belt drive directly, step-less adjust speed with inverter |
Winding Mode | The power-off synchronous electronic system |
Items | Parameters |
Spindle Gauge | 208mm, 231mm, 260mm, 297mm |
Single Section Length | 2110mm |
Spindle Type | 126, 136, 146, 156, 166, 196 |
No. of Spindles / Section | 20, 18, 16, 14 |
Spindle Speed Range | 5000-14000r/min |

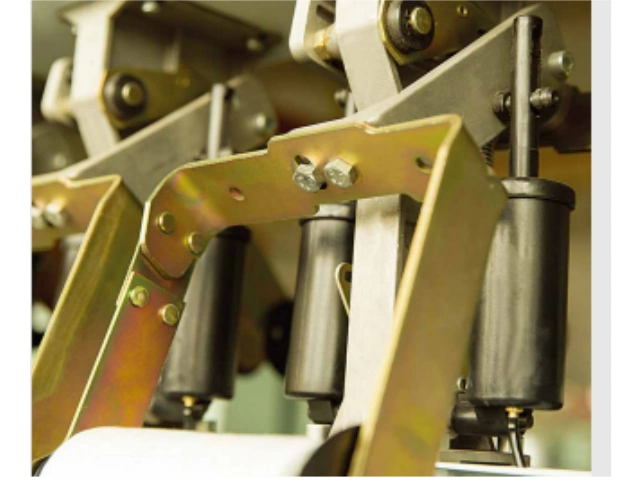

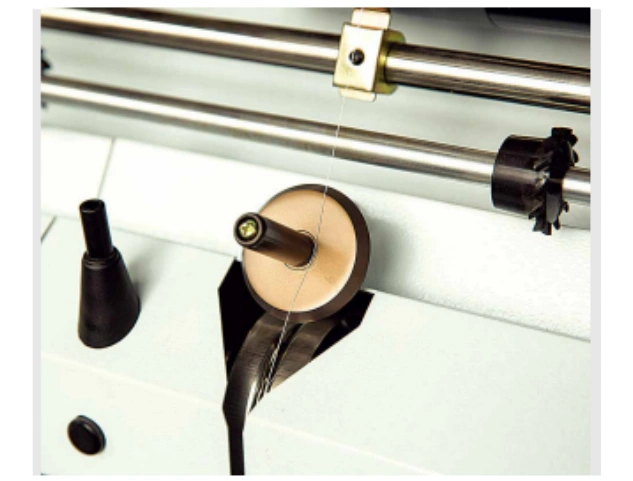

Pneumatic yarn guiding and pneumatic delay lifting are adopted to greatly improve the efficiency of piecing and solve the problem of yarn wear out;

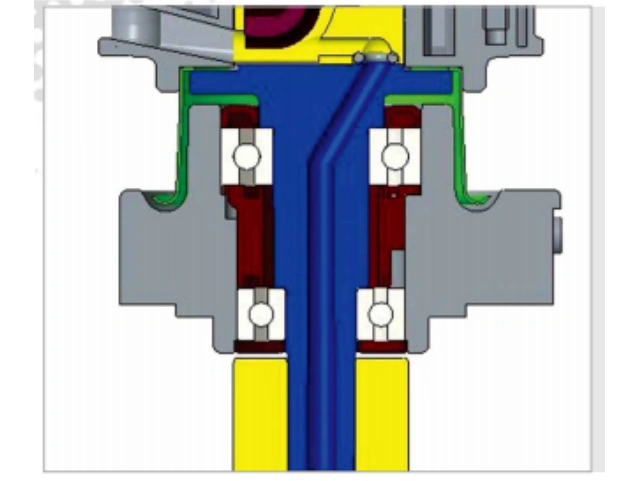

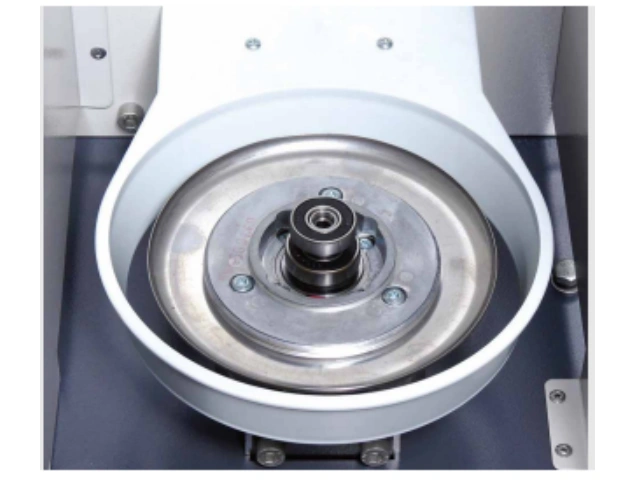

It adopts double row fixed bearing structure, and the maximum speed can reach 14000rpm;
The twisting area is separated from the transmission area to completely solve the problem of greasy yarn;

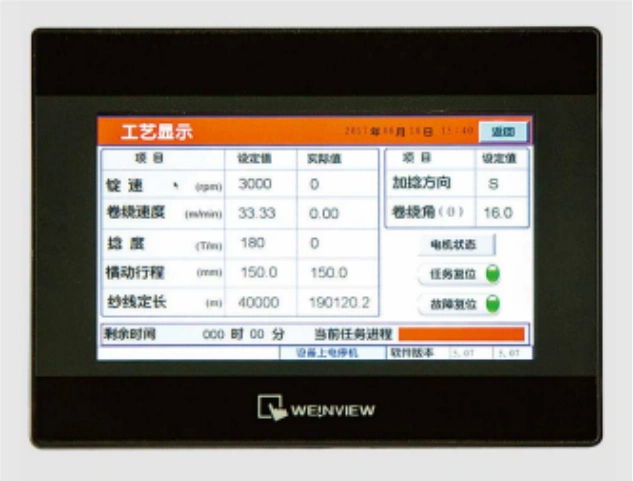

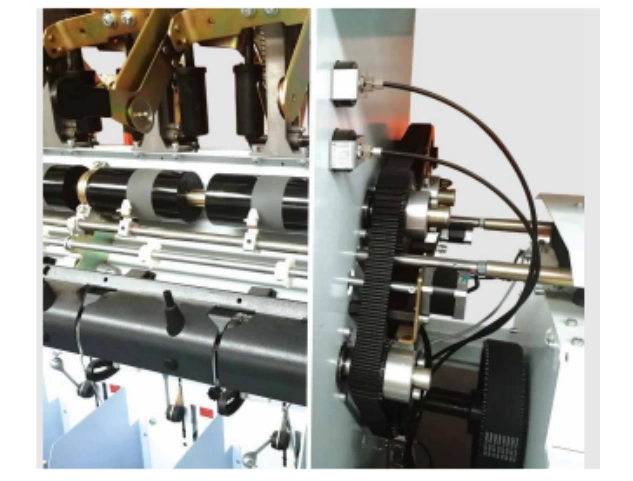

The intelligent electronic yarn guide system is convenient for process setting, and has the functions of power-off synchronization, speed closed loop, shift production management, peak valley power, loose winding, Internet of things, etc.
